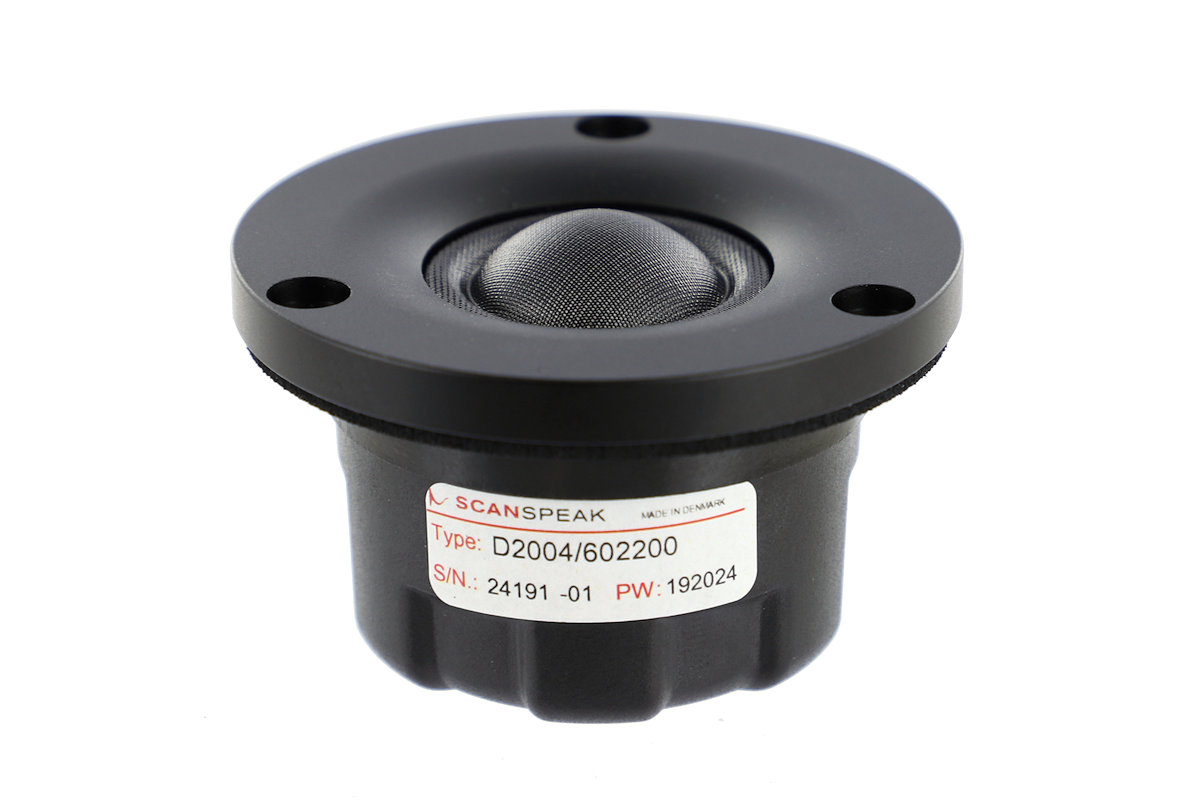

D2004/602200

20mm Dome Tweeter 4ohm, Neo Magnet

Category: Tags: ,

The compact size is one of the key elements of these Illuminator tweeters, which provides a high degree of flexibility within design options. The small size is employed without compromising sound quality where these compact tweeters are fully comparable to the renowned full size Illuminator and Revelator tweeters, no matter if the music is played at high or low listening levels.






Product Families

Illuminator

Product Categories

Tweeter


- 3/4" Textile Dome Diaphragm
- Large Roll Surround f. Wide Dispersion
- Patented Symmetrical Drive (SD-2) motor
- Black Anodized mashined Alu Faceplate
- Gold Plated Terminals


  Size:1.9 cm
  Fs:550 Hz
  Re:2.8 Ω
  Qt:0.95
  Sensitivity:89 dB
  VAS:0.01 ltr.
  Sd:4.5 cm²
  Bl:1.3 Tm
