Midrange

Showing all 8 results

  • Automotive

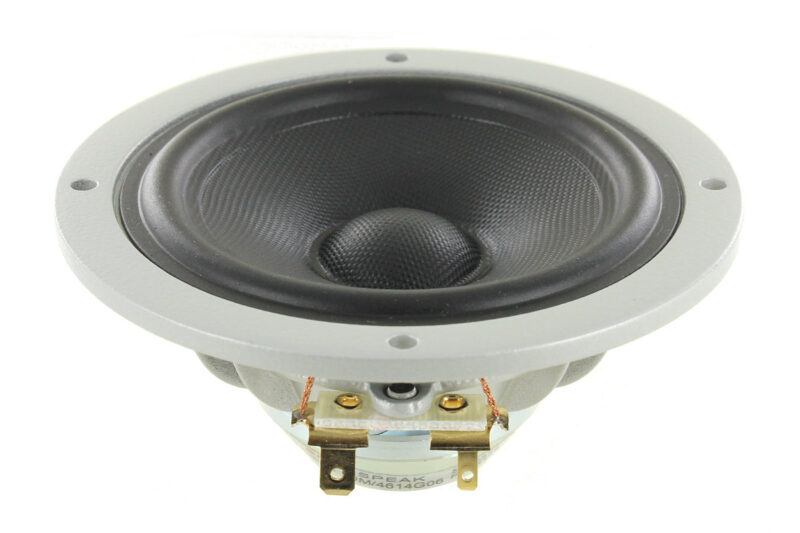

    10M/4614G06


    - Very wide Frequency Range
    - Coated NRSC Fibre Glass Cone (patent)
    - Compact Size, Neo magnet, Alu. Chassis
    - High Sensitivity 88dB / 2,83V
    - SBR Rubber Surround
    - Copper Cap on Pole Piece


      Size:10 cm
      Fs:110 Hz
      Re:3.2 Ω
      Qt:0.53
      Sensitivity:88 dB
      VAS:1.3 ltr.
      Sd:36 cm²
      Bl:3.2 Tm


  • Automotive

    11M/4631G05


    - Sliced Paper Cone
    - Compact Neodymium Magnet System
    - Low-Loss Linear Suspension
    - Robust Alu Chassis
    - High Grade Neo Magnet
    - Protective Magnet Cup with Grill over Pole Vent


      Size:11 cm
      Fs:68 Hz
      Re:3.3 Ω
      Qt:0.31
      Sensitivity:90 dB
      VAS:2.7 ltr.
      Sd:50 cm²
      Bl:5.5 Tm


  • Midrange

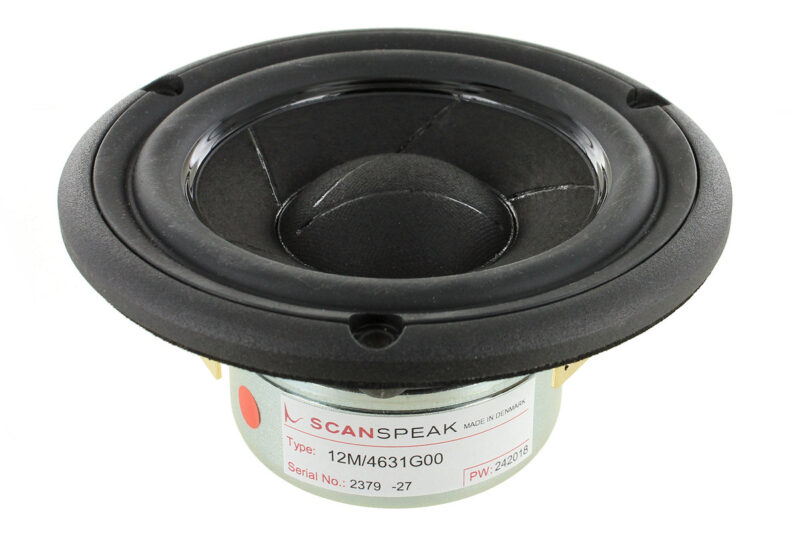

    12M/4631G00


    - Excellent Midrange reproduction
    - Sliced Cone (Controls Cone Breakups)
    - Low-Loss Linear Suspension
    - High Output 89dB @ 2,83V
    - Compact Neodymium Magnet System



      Size:12 cm
      Fs:75 Hz
      Re:3.2 Ω
      Qt:0.33
      Sensitivity:89 dB
      VAS:2.3 ltr.
      Sd:49 cm²
      Bl:5.3 Tm


  • Midrange

    12MU/4731T00


    - Under-Hung Neodymium Motor Design
    - Patented Symmetrical Drive (SD-3)
    - One Piece Cone-Dust Cap
    - Low-Loss Linear Suspension
    - Very Wide Frequency Response 100-10KHz
    - High Output 90dB @ 2,83V


      Size:12 cm
      Fs:64 Hz
      Re:3.1 Ω
      Qt:0.24
      Sensitivity:90 dB
      VAS:5.4 ltr.
      Sd:58 cm²
      Bl:5.1 Tm


  • Midrange

    12MU/8731T00


    - Under-Hung Neodymium Motor Design
    - Patented Symmetrical Drive (SD-3)
    - One Piece Cone-Dust Cap
    - Low-Loss Linear Suspension
    - Very Wide Frequency Response 100-10KHz
    - High Output 87dB @ 2,83V


      Size:12 cm
      Fs:66 Hz
      Re:5.9 Ω
      Qt:0.29
      Sensitivity:87 dB
      VAS:5.8 ltr.
      Sd:58 cm²
      Bl:6.1 Tm


  • Midrange

    15M/4531K00


    - Excellent Midrange Reproduction
    - Patented Symmetrical Drive motor design
    - Sliced Cone (Controls Cone Breakups)
    - Low-loss linear suspension
    - High Output 90dB @ 2,83V
    - Die cast Alu Chassis vented below spider


      Size:15 cm
      Fs:35 Hz
      Re:3.5 Ω
      Qt:0.23
      Sensitivity:90 dB
      VAS:23.8 ltr.
      Sd:95 cm²
      Bl:6 Tm


  • Midrange

    15M/4624G00


    - High Output 92,5dB @ 2,83V
    - Phase Plug for Improved Phase Linearity
    - Coated NRSC Fibre Glass Cone
    - Very Low Damping Foam Surround (Coated)
    - Die cast Alu Chassis vented below spider
    - Magnet System w. Alu Ring


      Size:15 cm
      Fs:100 Hz
      Re:3.2 Ω
      Qt:0.43
      Sensitivity:92.5 dB
      VAS:3.7 ltr.
      Sd:75 cm²
      Bl:5.3 Tm


  • Midrange

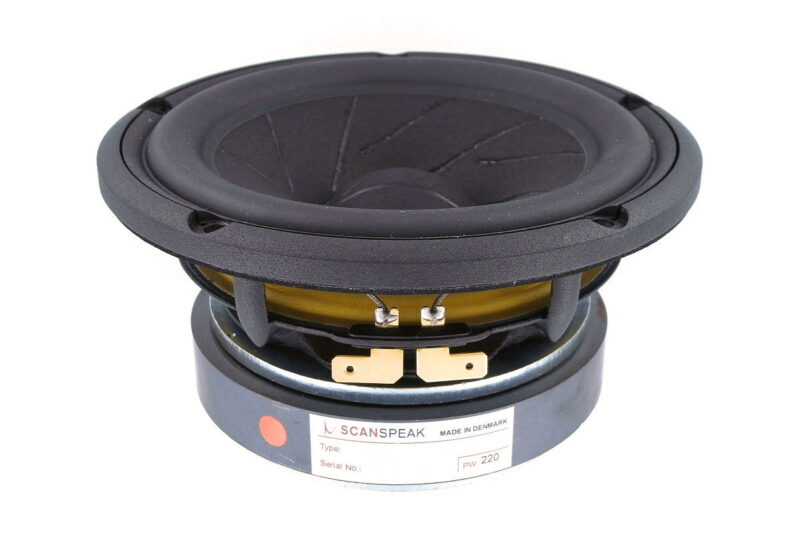

    15M/8631G00


    - Patented Symmetrical Drive motor system
    - Low loss, low damping linear suspension
    - Sliced cone technology
    - Die cast Alu chassis vented below spider
    - Large ferrite magnet system



      Size:15 cm
      Fs:42 Hz
      Re:5.9 Ω
      Qt:0.35
      Sensitivity:87 dB
      VAS:16.2 ltr.
      Sd:95 cm²
      Bl:6.8 Tm


  • Midrange

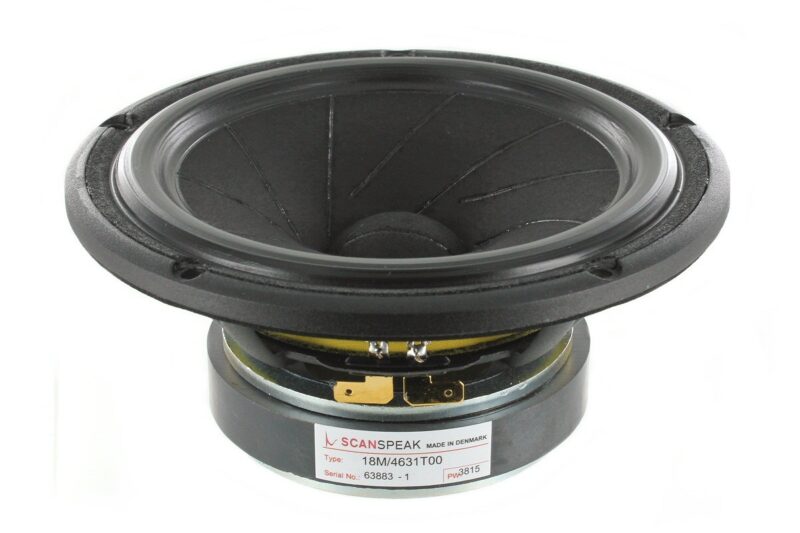

    18M/4631T00


    - Patented Symmetrical Drive motor design
    - Sliced Cone (Control Cone Breakups)
    - Low-loss Linear Suspension
    - High Sensitivity 92dB @ 2,83V
    - Coated Foam Surround
    - Rigid Titanium Voice Coil Former


      Size:18 cm
      Fs:65 Hz
      Re:3.5 Ω
      Qt:0.6
      Sensitivity:92 dB
      VAS:14 ltr.
      Sd:154 cm²
      Bl:5.6 Tm


  • Midrange

    18M/8631T00


    - Patented Symmetrical Drive motor design
    - Low-loss Linear Suspension
    - Coated Foam Surround
    - Sliced Cone (Control Cone Breakups)
    - High Sensitivity 89dB @ 2,83V
    - Rigid Titanium Voice Coil Former


      Size:18 cm
      Fs:65 Hz
      Re:6 Ω
      Qt:0.71
      Sensitivity:89 dB
      VAS:14 ltr.
      Sd:154 cm²
      Bl:6.5 Tm


  • Midrange

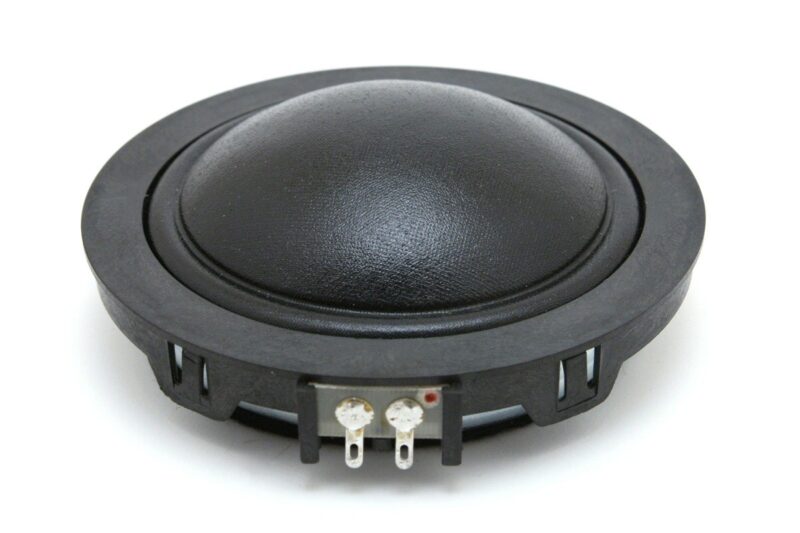

    D7608/920000


    - Fast action due to low moving mass
    - Wide Dispersion
    - High SPL Output 92dB
    - Vented / open rearside
    - Internal Ferrite Magnet
    - Internal grill to prevent dome from being pushed in


      Size:7.6 cm
      Fs:300 Hz
      Re:5.7 Ω
      Qt:1.73
      Sensitivity:92 dB
      VAS:0.36 ltr.
      Sd:55 cm²
      Bl:4.7 Tm


  • Midrange

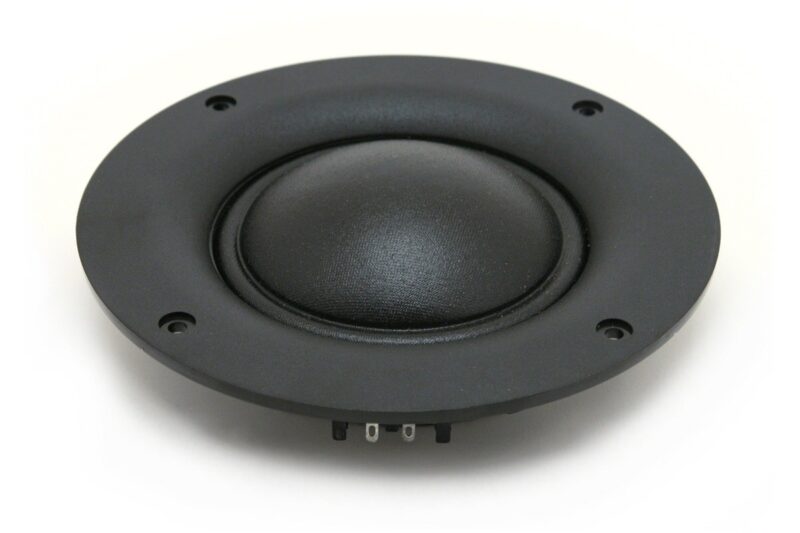

    D7608/920010


    - Fast action due to low moving mass
    - Wide Dispersion
    - High SPL Output 92dB
    - Vented / open rearside
    - Internal Ferrite Magnet
    - Internal grill to prevent dome from being pushed in


      Size:7.6 cm
      Fs:300 Hz
      Re:5.7 Ω
      Qt:1.73
      Sensitivity:92 dB
      VAS:0.36 ltr.
      Sd:55 cm²
      Bl:4.7 Tm


  • Midrange

    D8404/552000


    - Elliptical voice coil
    - AirCirc optimized magnetsystem
    - Low mechanical loss
    - Exceptionally low distortion
    - Dual suspension
    - Flexible optics with replaceable decor ring


      Size:8.4 cm
      Fs:280 Hz
      Re:3 Ω
      Qt:0.69
      Sensitivity:92 dB
      VAS:0.27 ltr.
      Sd:58 cm²
      Bl:6.1 Tm
