Subwoofer

Showing all 9 results

  • Subwoofer

    23W/4557T00


    - Patented Symmetrical Drive Motor Design
    - Silver Anodized Rigid Alu Cone
    - Long Throw Surround
    - Die cast Alu Chassis vented below spider
    - Ferrite Magnet System w. Rubber Boot
    - Gold Binding Post Terminals


      Size:23 cm
      Fs:21 Hz
      Re:3.5 Ω
      Qt:0.47
      Sensitivity:82 dB
      VAS:45 ltr.
      Sd:232 cm²
      Bl:9.3 Tm


  • Subwoofer

    23W/4557T02


    - Patented Symmetrical Drive Motor Design
    - Black Anodized Rigid Alu Cone
    - Long Throw Surround
    - Die cast Alu Chassis vented below spider
    - Ferrite Magnet System w. Rubber Boot
    - Gold Binding Post Terminals


      Size:23 cm
      Fs:21 Hz
      Re:3.5 Ω
      Qt:0.47
      Sensitivity:82 dB
      VAS:45 ltr.
      Sd:232 cm²
      Bl:9.3 Tm

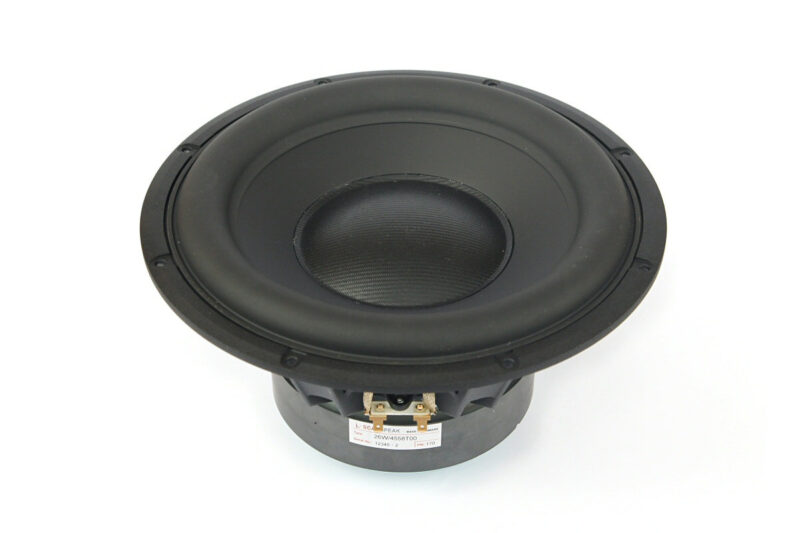

  • Subwoofer

    26W/4558T00


    - 56mm Peak Excursion, 25mm Linear
    - High Output 88dB @ 2,83V
    - Low Resonance Freq. 21Hz
    - Anodized Alu Cone, Fibre Glass Dust Cap
    - Magnet System w. Alu Ring
    - Die cast Alu Chassis vented below spider


      Size:26 cm
      Fs:21 Hz
      Re:2.6 Ω
      Qt:0.31
      Sensitivity:88 dB
      VAS:94.9 ltr.
      Sd:352 cm²
      Bl:10.5 Tm

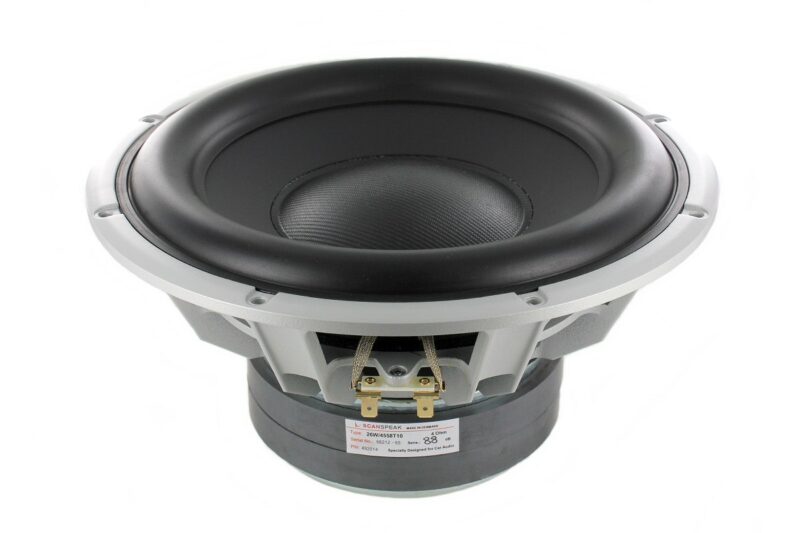

  • Automotive

    26W/4558T06


    - 56mm Peak Excursion, 25mm Linear
    - Low Resonance Freq. 21Hz
    - Magnet System w. Alu Ring
    - High Output 88dB @ 2,83V
    - Anodized Alu Cone, Fibre Glass Dust Cap
    - Die cast Alu Chassis vented below spider


      Size:26 cm
      Fs:21 Hz
      Re:2.6 Ω
      Qt:0.31
      Sensitivity:88 dB
      VAS:95 ltr.
      Sd:352 cm²
      Bl:10.5 Tm

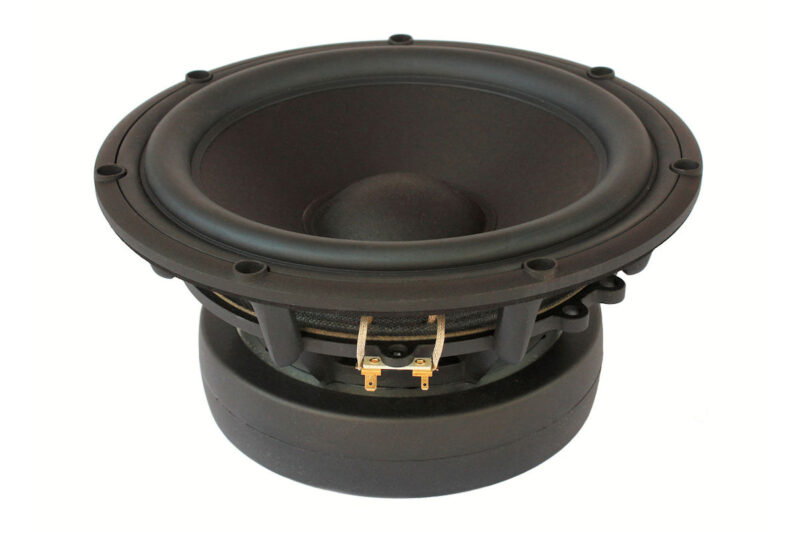

  • Subwoofer

    28W/4878T00


    - Paper sandwich cone
    - Patented Symmetrical Drive motor
    - Spider with balanced tinsel leads
    - Extreme linear excursion (+/-14 mm)
    - 3" Voice coil, Titanium former and paper reinforced
    - Stiff and strong die cast aluminium chassis


      Size:28 cm
      Fs:18 Hz
      Re:3.1 Ω
      Qt:0.3
      Sensitivity:88 dB
      VAS:127 ltr.
      Sd:363 cm²
      Bl:11.2 Tm

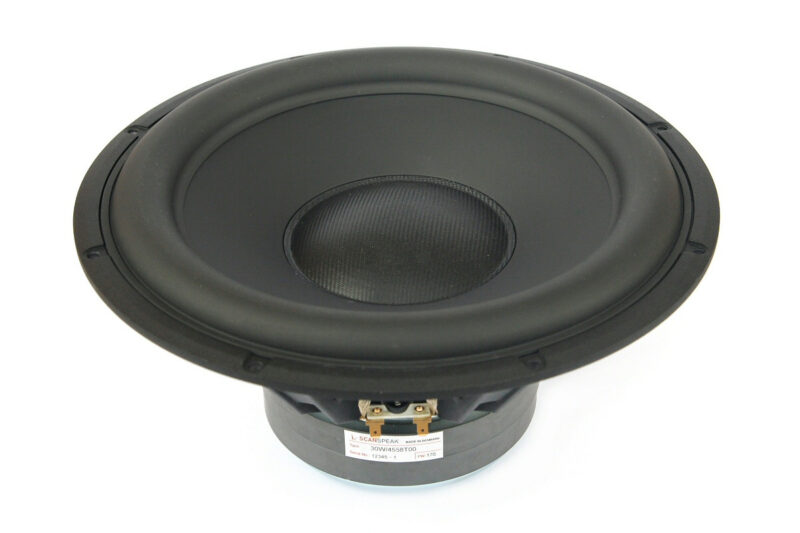

  • Subwoofer

    30W/4558T00


    - 56mm Peak Excursion, 25mm Linear
    - High Output 89dB @ 2,83V
    - Low Resonance Freq. 17Hz
    - Anodized Alu Cone, Fibre Glass Dust Cap
    - Magnet System w. Alu Ring
    - Die cast Alu Chassis vented below spider


      Size:30 cm
      Fs:17 Hz
      Re:2.6 Ω
      Qt:0.32
      Sensitivity:89 dB
      VAS:197 ltr.
      Sd:466 cm²
      Bl:10.5 Tm

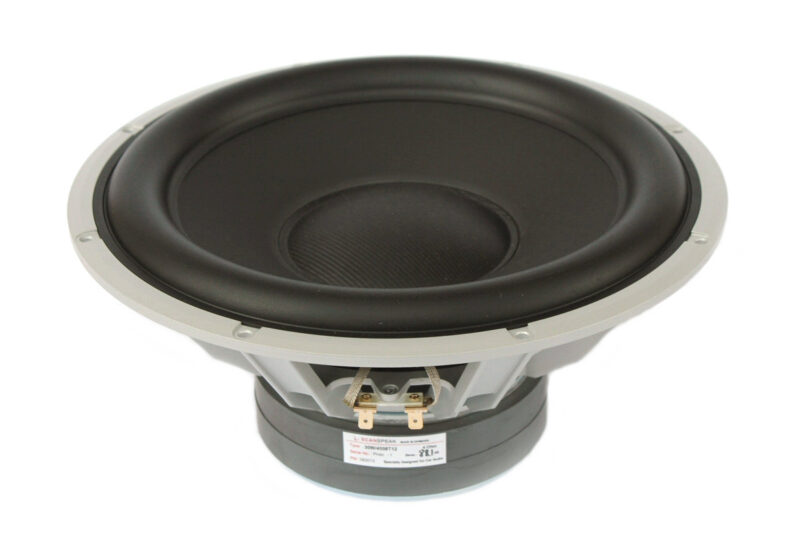

  • Automotive

    30W/4558T06


    - 56mm Peak Excursion, 25mm Linear
    - Low Resonance Freq. 17Hz
    - Magnet System w. Alu Ring
    - High Output 89dB @ 2,83V
    - Anodized Alu Cone, Fibre Glass Dust Cap
    - Die cast Alu Chassis vented below spider


      Size:30 cm
      Fs:17 Hz
      Re:2.6 Ω
      Qt:0.32
      Sensitivity:89 dB
      VAS:197 ltr.
      Sd:466 cm²
      Bl:10.5 Tm

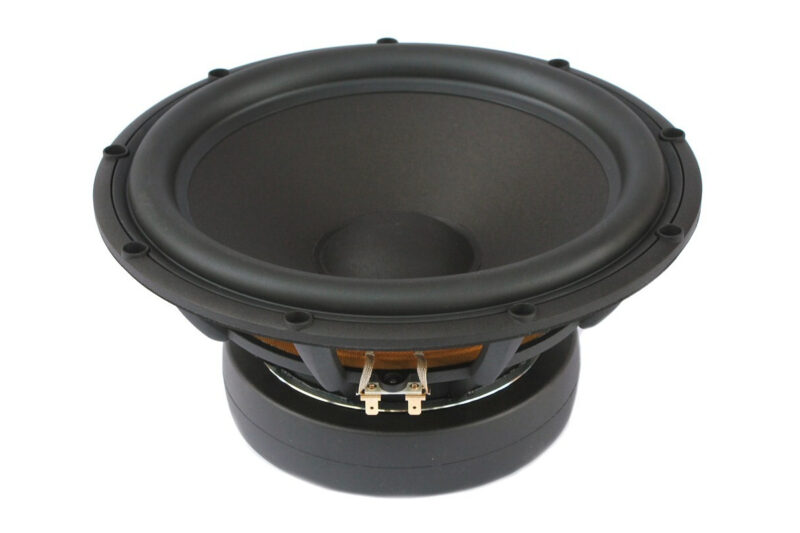

  • Subwoofer

    32W/4878T00


    - Paper sandwich cone with Patented foam filling
    - Extreme linear excursion (+/-14 mm)
    - Patented Symmetrical Drive motor
    - 3" Voice coil, Titanium former and paper reinforced
    - Spider with balanced woven in tinsel leads
    - Stiff and strong die cast aluminium chassis


      Size:32 cm
      Fs:18 Hz
      Re:3.1 Ω
      Qt:0.32
      Sensitivity:90 dB
      VAS:204 ltr.
      Sd:526 cm²
      Bl:12.5 Tm

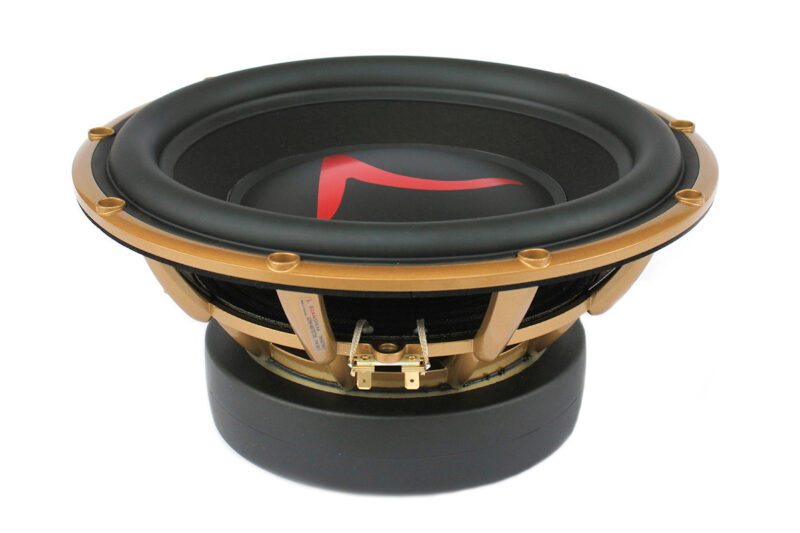

  • Automotive

    32W/4878T05


    - Paper sandwich cone with patented foam filling
    - Extreme long linear excursion (+/-14mm)
    - Patented Symmetrical Drive motor
    - 3" Voice coil, Titanium former, paper reinforced
    - Large dustcap w. logo
    - Stiff robust die cast alu chassis


      Size:32 cm
      Fs:17 Hz
      Re:3.1 Ω
      Qt:0.32
      Sensitivity:89 dB
      VAS:180 ltr.
      Sd:526 cm²
      Bl:12.5 Tm
