Tweeter

Showing 1–9 of 49 results

•
  Tweeter

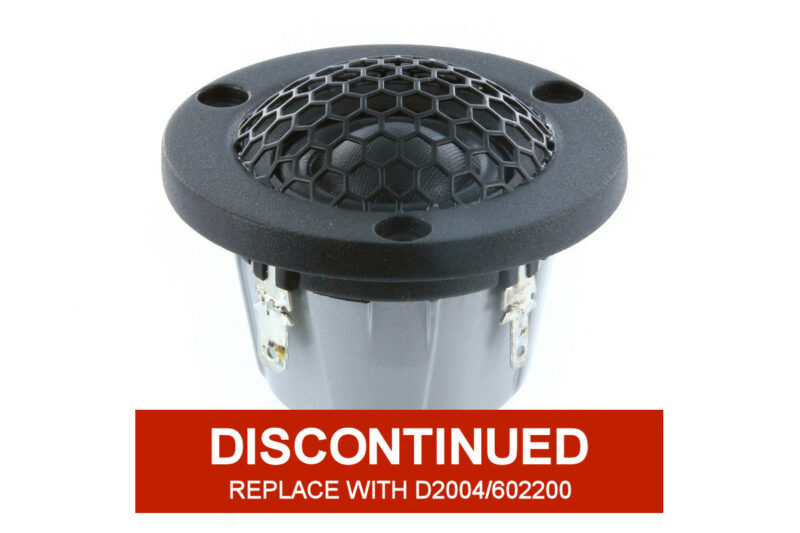

  D2004/602000

  ---

  - 3/4" Textile Dome Diaphragm
  - Large Roll Surround f. Wide Dispersion
  - Patented Symmetrical Drive (SD-2) motor
  - Sound Transparant Protective Grill
  - Non Resonant Alu Rear Chamber
  - Die Cast Housing & Face Plate



  Size:	1.9 cm
  Fs:	600 Hz
  Re:	2.8 Ω
  Qt:	1.07
  Sensitivity:	88.5 dB
  VAS:	0.01 ltr.
  Sd:	4.5 cm²
  Bl:	1.3 Tm




•
  Tweeter

  D2004/602200

  ---

  - 3/4" Textile Dome Diaphragm
  - Large Roll Surround f. Wide Dispersion
  - Patented Symmetrical Drive (SD-2) motor
  - Black Anodized mashined Alu Faceplate
  - Gold Plated Terminals




  Size:	1.9 cm
  Fs:	550 Hz
  Re:	2.8 Ω
  Qt:	0.95
  Sensitivity:	89 dB
  VAS:	0.01 ltr.
  Sd:	4.5 cm²
  Bl:	1.3 Tm




•
  Tweeter

  D2008/852100

  ---

  - 3/4" Textile Dome Diaphragm
  - Wide Dispersion
  - Dual Rear Chamber
  - Vented Pole Piece
  - Neodynium Magnet




  Size:	1.9 cm
  Fs:	550 Hz
  Re:	5.9 Ω
  Qt:	0.49
  Sensitivity:	89 dB
  VAS:	0.01 ltr.
  Sd:	3.8 cm²
  Bl:	2.4 Tm




•
  Tweeter

  D2010/852100

  ---

  - 3/4" Textile Dome Diaphragm
  - Wide Dispersion
  - Diffraction Damping Cell Rubber Front
  - Dual Rear Chamber
  - Vented Pole Piece




  Size:	1.9 cm
  Fs:	550 Hz
  Re:	5.9 Ω
  Qt:	0.49
  Sensitivity:	89 dB
  VAS:	0.01 ltr.
  Sd:	3.8 cm²
  Bl:	2.4 Tm




•
  Tweeter

  D2104/712000

  ---

  - Patented Symmetrical Drive (SD-2) motor
  - Neodymium ring magnet system with double vent.
  - High frequency extension beyond 40kHz
  - Coated textile diaphragm w. large roll Surround
  - Back chamber with high consistency felt pads
  - Anodized Machined Alu Face Plate



  Size:	1.9 cm
  Fs:	500 Hz
  Re:	2.8 Ω
  Qt:	0.40
  Sensitivity:	92 dB
  VAS:	0.01 ltr.
  Sd:	4.5 cm²
  Bl:	2.0 Tm




•
  Tweeter

  D2404/552000

  ---

  - Elliptic voice coil
  - Low mechanical losses
  - High frequency extension beyond 30 kHz
  - Aircirc optimized magnetsystem
  - Low distortion
  - Flexible optics with replaceable decor ring



  Size:	2.4 cm
  Fs:	550 Hz
  Re:	3.4 Ω
  Qt:	0.83
  Sensitivity:	91 dB
  VAS:	0.01 ltr.
  Sd:	4.6 cm²
  Bl:	2 Tm




•
  Tweeter

  D2604/830000

  ---

  - High sensitivity - 92dB
  - Extended Frequency to Above 30KHz
  - Low Resonance Frequency - 630Hz
  - Low Distortion
  - Wide Dispersion
  - Textile Diaphragm, Wide Surround



  Size:	2.6 cm
  Fs:	630 Hz
  Re:	2.8 Ω
  Qt:	0.79
  Sensitivity:	92 dB
  VAS:	0.01 ltr.
  Sd:	8 cm²
  Bl:	2.2 Tm




•
  Tweeter

  D2604/833000

  ---

  - High sensitivity - 93dB
  - Extended Frequency to Above 40KHz
  - Low Resonance Frequency - 475Hz
  - Low Distortion
  - Wide Dispersion
  - Textile Diaphragm, wide Surround



  Size:	2.6 cm
  Fs:	475 Hz
  Re:	2.8 Ω
  Qt:	0.55
  Sensitivity:	93 dB
  VAS:	0.02 ltr.
  Sd:	8 cm²
  Bl:	2.2 Tm




•
  Tweeter

  D2606/920000

  ---

  - High Performance Tweeter
  - Coated Textile Diaphragm
  - Low Damping Ferrofluid Cooling
  - High Stability
  - Linear response faceplate, Neutral Design
  - Dampened Cavity in Pole Piece



  Size:	2.6 cm
  Fs:	1100 Hz
  Re:	4.6 Ω
  Qt:	0.84
  Sensitivity:	91.5 dB
  VAS:	0.01 ltr.
  Sd:	7.1 cm²
  Bl:	2.7 Tm
