Ellipticor
With the Ellipticor family we have broken away from the traditional circular motor structures and resolved their inherent breakup behavior.
Perhaps not surprisingly judging by the name, Ellipticor’s key features are an elliptical shaped voice coil and magnet gap. Combined with our powerful SD AirCirc principle the Ellipticor transducers have high sensitivity, very low distortion, and have an extremely fast response to transients. In particular the sonic performance of the midrange and treble is outstanding. The sound is clean, transparent and has amazing transient behavior. There is absolutely nothing that´s introverted about these drivers.
Above all a TRUE TO LIVE sound makes Ellipticors among the very best loudspeaker transducers on the market!
At present our Ellipticor family is small but work is in progress to expand the family with more models and sizes to fit our customer’s needs for outstanding high end transducers.
Perhaps not surprisingly judging by the name, Ellipticor’s key features are an elliptical shaped voice coil and magnet gap. Combined with our powerful SD AirCirc principle the Ellipticor transducers have high sensitivity, very low distortion, and have an extremely fast response to transients. In particular the sonic performance of the midrange and treble is outstanding. The sound is clean, transparent and has amazing transient behavior. There is absolutely nothing that´s introverted about these drivers.
Above all a TRUE TO LIVE sound makes Ellipticors among the very best loudspeaker transducers on the market!
At present our Ellipticor family is small but work is in progress to expand the family with more models and sizes to fit our customer’s needs for outstanding high end transducers.
Showing all 8 results
-
Midwoofer

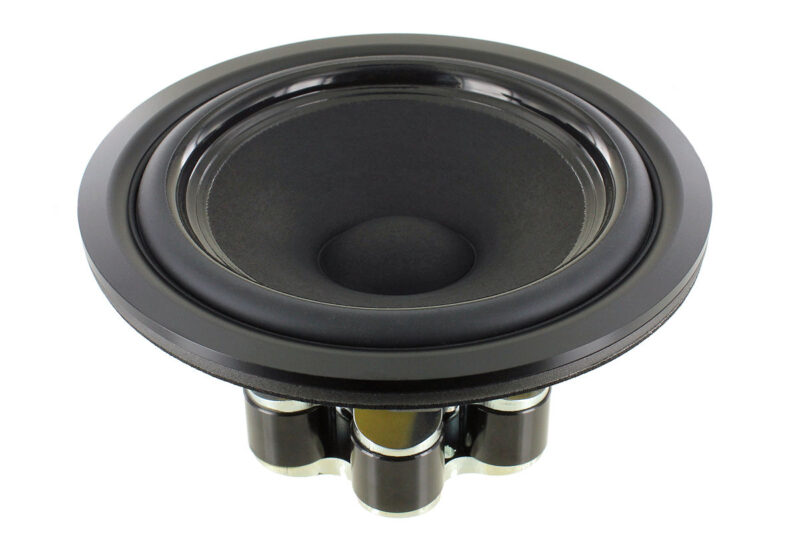

18WE/4542T00
- Elliptic voice coil
- Very low mechanical losses
- High sensitivity (SPL)
- AirCirc optimized magnetsystem
- Exceptionally low distortion
- Flexible appearence with replaceable decor ringSize: 18 cm Fs: 46 Hz Re: 3.4 Ω Qt: 0.25 Sensitivity: 92.5 dB VAS: 17.2 ltr. Sd: 133 cm² Bl: 8.1 Tm -
Midwoofer
18WE/8542T00
- Elliptic voice coil
- Very low mechanical losses
- High sensitivity (SPL)
- AirCirc optimized magnetsystem
- Exceptionally low distortion
- Flexible appearence with replaceable decor ringSize: 18 cm Fs: 50 Hz Re: 6.3 Ω Qt: 0.32 Sensitivity: 89 dB VAS: 16 ltr. Sd: 133 cm² Bl: 9.7 Tm -
Midwoofer

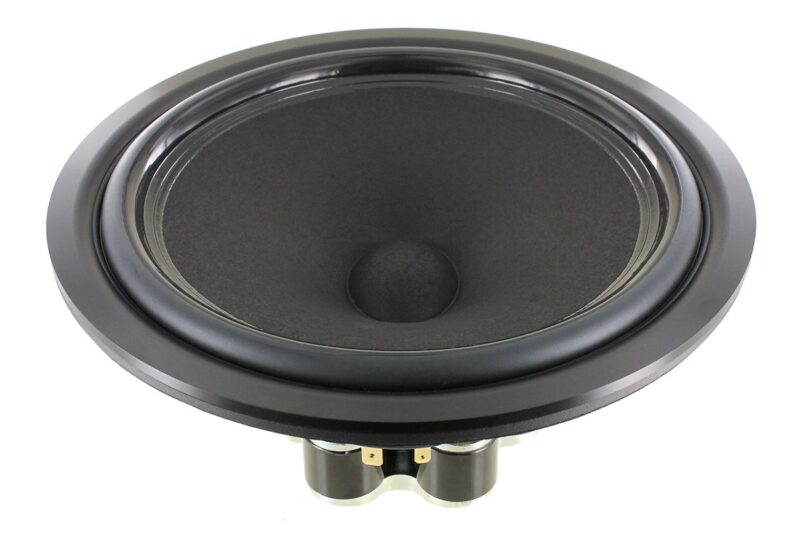

21WE/4542T00
- Elliptic voice coil
- Very low mechanical losses
- High sensitivity (SPL)
- AirCirc optimized magnetsystem
- Exceptionally low distortion
- Flexible appearence with replaceable decor ringSize: 21 cm Fs: 38 Hz Re: 3.4 Ω Qt: 0.28 Sensitivity: 93.5 dB VAS: 54 ltr. Sd: 233 cm² Bl: 8.2 Tm -
Midwoofer
21WE/8542T00
- Elliptic voice coil
- Very low mechanical losses
- High sensitivity (SPL)
- AirCirc optimized magnetsystem
- Exceptionally low distortion
- Flexible appearence with replaceable decor ringSize: 21 cm Fs: 36 Hz Re: 6.3 Ω Qt: 0.38 Sensitivity: 91 dB VAS: 54 ltr. Sd: 233 cm² Bl: 10 Tm -
Woofer

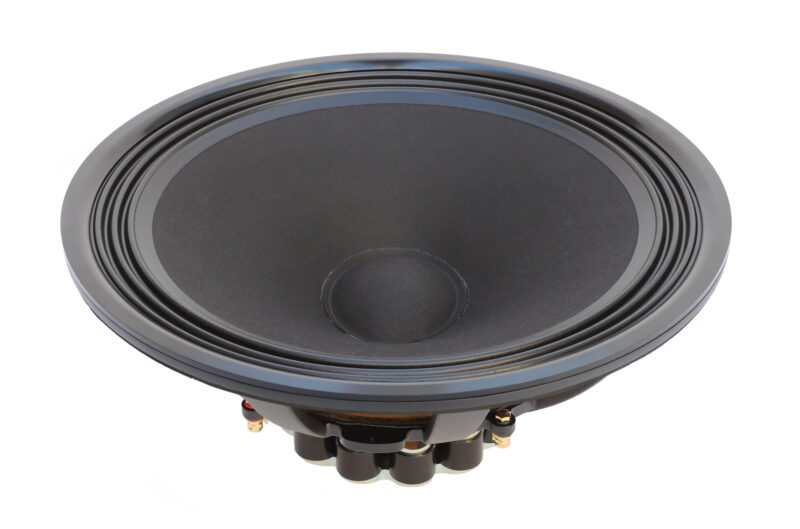

38WE/8582T00
- Elliptical voice coil
- AirCirc optimized magnetsystem
- Very low mechanical losses
- Exceptionally low distortion
- High Sensitivity (SPL)
- Flexible apperance with replaceable decor ringSize: 38 cm Fs: 26 Hz Re: 6.4 Ω Qt: 0.24 Sensitivity: 95 dB VAS: 423 ltr. Sd: 825 cm² Bl: 18.7 Tm -
Tweeter

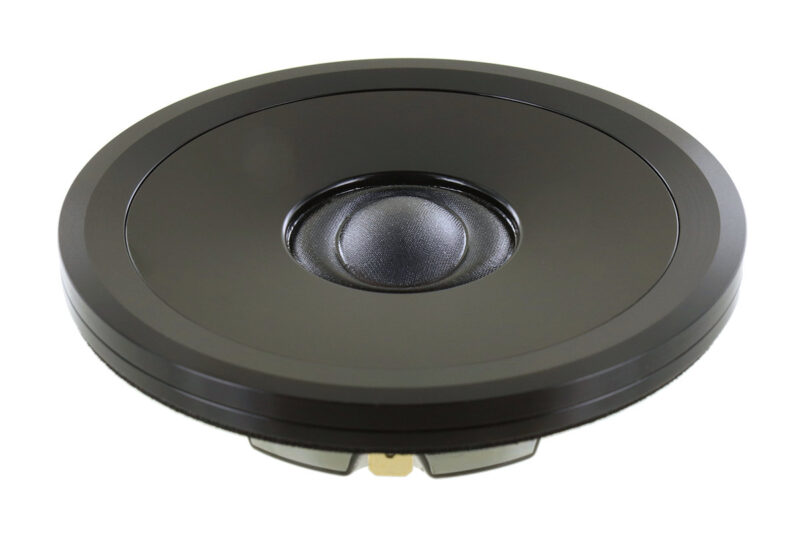

D2404/552000
- Elliptic voice coil
- Low mechanical losses
- High frequency extension beyond 30 kHz
- Aircirc optimized magnetsystem
- Low distortion
- Flexible optics with replaceable decor ringSize: 2.4 cm Fs: 550 Hz Re: 3.4 Ω Qt: 0.83 Sensitivity: 91 dB VAS: 0.01 ltr. Sd: 4.6 cm² Bl: 2 Tm -
Tweeter

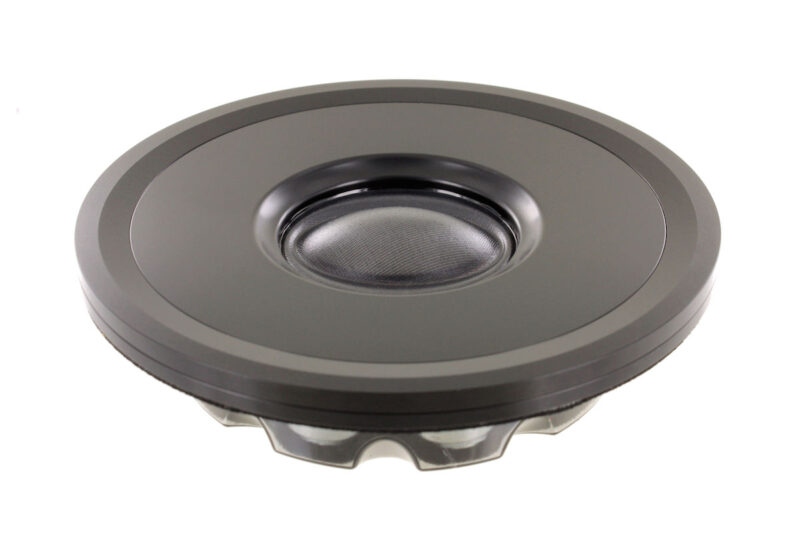

D3404/552000
- Elliptic voice coil
- AirCirc optimized magnetsystem
- Low mechanical losses
- Exceptionally low distortion
- High sensitivity (SPL)
- Flexible optics with replaceable decor ringSize: 2.8 cm Fs: 475 Hz Re: 3 Ω Qt: 0.57 Sensitivity: 97 dB VAS: 0.04 ltr. Sd: 11.4 cm² Bl: 2.8 Tm -
Midrange

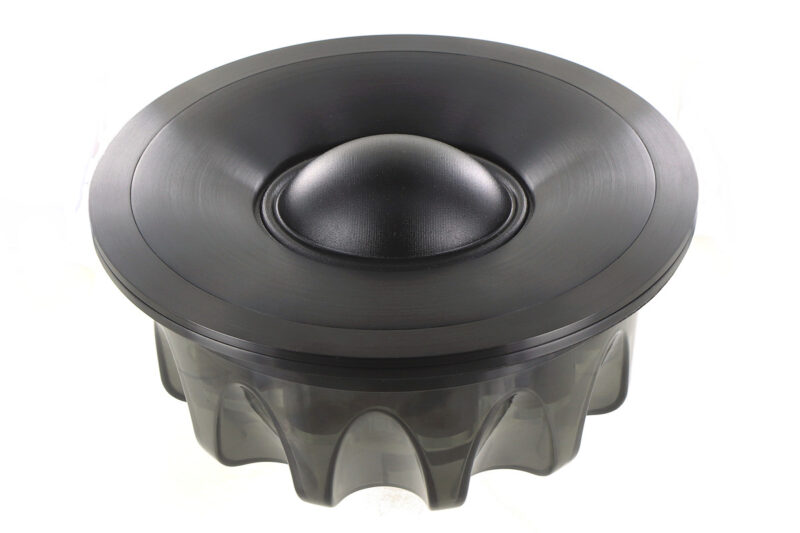

D8404/552000
- Elliptical voice coil
- AirCirc optimized magnetsystem
- Low mechanical loss
- Exceptionally low distortion
- Dual suspension
- Flexible optics with replaceable decor ringSize: 8.4 cm Fs: 280 Hz Re: 3 Ω Qt: 0.69 Sensitivity: 92 dB VAS: 0.27 ltr. Sd: 58 cm² Bl: 6.1 Tm
