Revelator

Products in our Revelator family have been an industry standard in high end loudspeaker systems for many years. The key feature being the filled cone slits for the midwoofers and midranges which reproduce music at a dynamic level and clarity that at the time of introduction was unparalleled in the market. The tweeters are predominately designed with a large roll surround, powerful ring Neodymium magnets and optimized airflow systems.
The latest addition to the Revelator family is a 20mm dome tweeter. The large woofers and subwoofers are relatively new additions too and represent an increase in cone excursion and dynamic capability with impressive transient behavior.
Within the wide Revelator range you will find everything you need when it comes to high end audio transducers, whether you need drivers for a small 2-way system or a giant multi-way loudspeaker. The Revelator family can supply it all with superb performance and quality.

Showing all 8 results

  • Midrange

    12M/4631G00

    - Excellent Midrange reproduction
    - Sliced Cone (Controls Cone Breakups)
    - Low-Loss Linear Suspension
    - High Output 89dB @ 2,83V
    - Compact Neodymium Magnet System



      Size:12 cm
      Fs:75 Hz
      Re:3.2 Ω
      Qt:0.33
      Sensitivity:89 dB
      VAS:2.3 ltr.
      Sd:49 cm²
      Bl:5.3 Tm


  • Midrange

    15M/4531K00

    - Excellent Midrange Reproduction
    - Patented Symmetrical Drive motor design
    - Sliced Cone (Controls Cone Breakups)
    - Low-loss linear suspension
    - High Output 90dB @ 2,83V
    - Die cast Alu Chassis vented below spider


      Size:15 cm
      Fs:35 Hz
      Re:3.5 Ω
      Qt:0.23
      Sensitivity:90 dB
      VAS:23.8 ltr.
      Sd:95 cm²
      Bl:6 Tm


  • Midrange

    15M/8631G00

    - Patented Symmetrical Drive motor system
    - Low loss, low damping linear suspension
    - Sliced cone technology
    - Die cast Alu chassis vented below spider
    - Large ferrite magnet system



      Size:15 cm
      Fs:42 Hz
      Re:5.9 Ω
      Qt:0.35
      Sensitivity:87 dB
      VAS:16.2 ltr.
      Sd:95 cm²
      Bl:6.8 Tm


  • Midwoofer

    15W/4531G00

    - Patented Symmetrical Drive motor design
    - Sliced Cone (Controls Cone Breakups)
    - Low-Loss linear suspension
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider
    - Large Ferrite Magnet System


      Size:15 cm
      Fs:40 Hz
      Re:3.4 Ω
      Qt:0.32
      Sensitivity:87 dB
      VAS:15.8 ltr.
      Sd:95 cm²
      Bl:5.7 Tm


  • Midwoofer

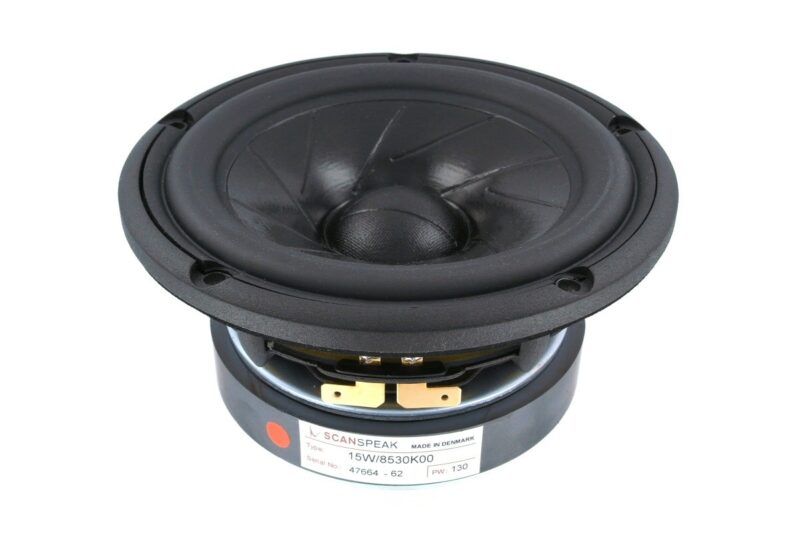

    15W/8530K00

    - Patented Symmetrical Drive Motor Design
    - Sliced Cone (Controls Cone Breakups)
    - Low-Loss linear suspension
    - Low Damping SBR Rubber Surround
    - Coated Paper Cone
    - Large Ferrite Magnet System


      Size:15 cm
      Fs:39 Hz
      Re:5.9 Ω
      Qt:0.39
      Sensitivity:86 dB
      VAS:16 ltr.
      Sd:95 cm²
      Bl:6.6 Tm


  • Midwoofer

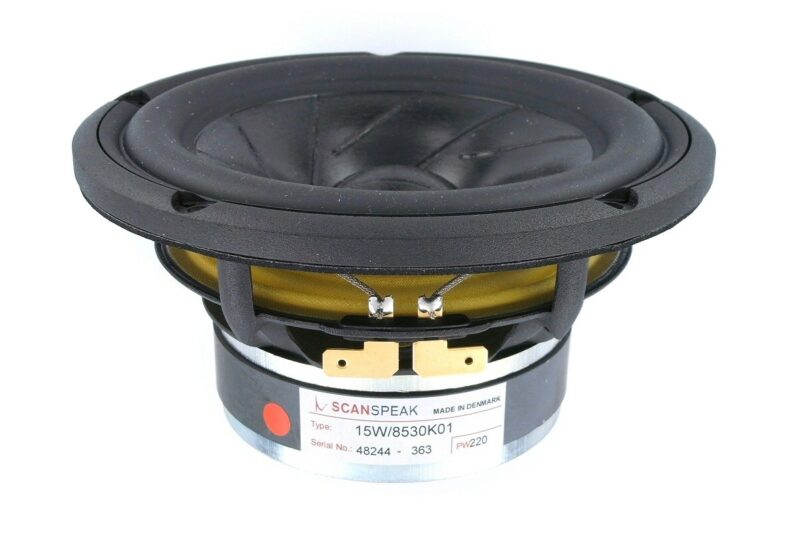

    15W/8530K01

    - Patented Symmetrical Drive Motor Design
    - Sliced Cone (Controls Cone Breakups)
    - Coated Paper Cone
    - Low-Loss linear suspension
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider


      Size:15 cm
      Fs:38 Hz
      Re:5.9 Ω
      Qt:0.5
      Sensitivity:84.5 dB
      VAS:17 ltr.
      Sd:95 cm²
      Bl:5.8 Tm

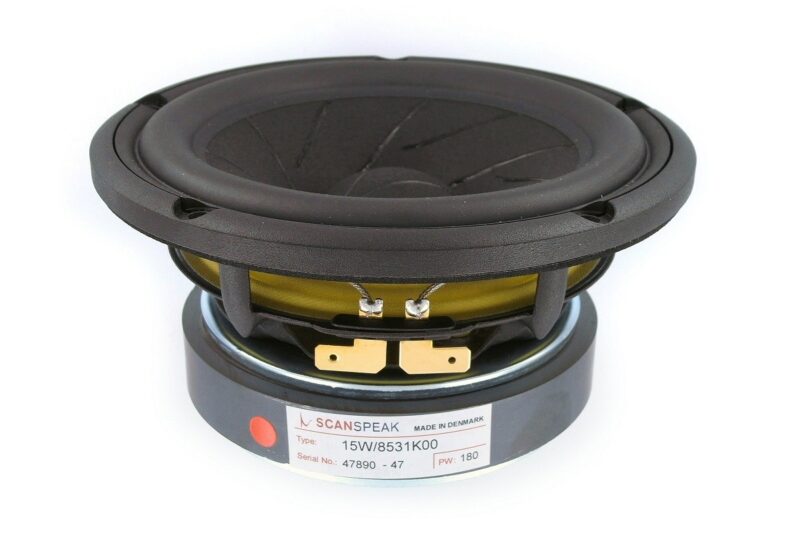

  • Midwoofer

    15W/8531K00

    - Patented Symmetrical Drive Motor Design
    - Sliced Cone (Controls Cone Breakups)
    - Low-Loss linear suspension
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider
    - Large Ferrite Magnet System


      Size:15 cm
      Fs:39 Hz
      Re:5.8 Ω
      Qt:0.38
      Sensitivity:86 dB
      VAS:16.7 ltr.
      Sd:95 cm²
      Bl:6.6 Tm


  • Midrange

    18M/4631T00

    - Patented Symmetrical Drive motor design
    - Sliced Cone (Control Cone Breakups)
    - Low-loss Linear Suspension
    - High Sensitivity 92dB @ 2,83V
    - Coated Foam Surround
    - Rigid Titanium Voice Coil Former


      Size:18 cm
      Fs:65 Hz
      Re:3.5 Ω
      Qt:0.6
      Sensitivity:92 dB
      VAS:14 ltr.
      Sd:154 cm²
      Bl:5.6 Tm


  • Midrange

    18M/8631T00

    - Patented Symmetrical Drive motor design
    - Low-loss Linear Suspension
    - Coated Foam Surround
    - Sliced Cone (Control Cone Breakups)
    - High Sensitivity 89dB @ 2,83V
    - Rigid Titanium Voice Coil Former


      Size:18 cm
      Fs:65 Hz
      Re:6 Ω
      Qt:0.71
      Sensitivity:89 dB
      VAS:14 ltr.
      Sd:154 cm²
      Bl:6.5 Tm


  • Midwoofer

    18W/4531G00

    - Patented Symmetrical Drive Motor Design
    - Sliced Cone (Controls Cone Breakups)
    - Low-Loss linear suspension
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider
    - Large Ferrite Magnet System


      Size:18 cm
      Fs:33 Hz
      Re:3.4 Ω
      Qt:0.35
      Sensitivity:90 dB
      VAS:41.9 ltr.
      Sd:150 cm²
      Bl:5.7 Tm


  • Midwoofer

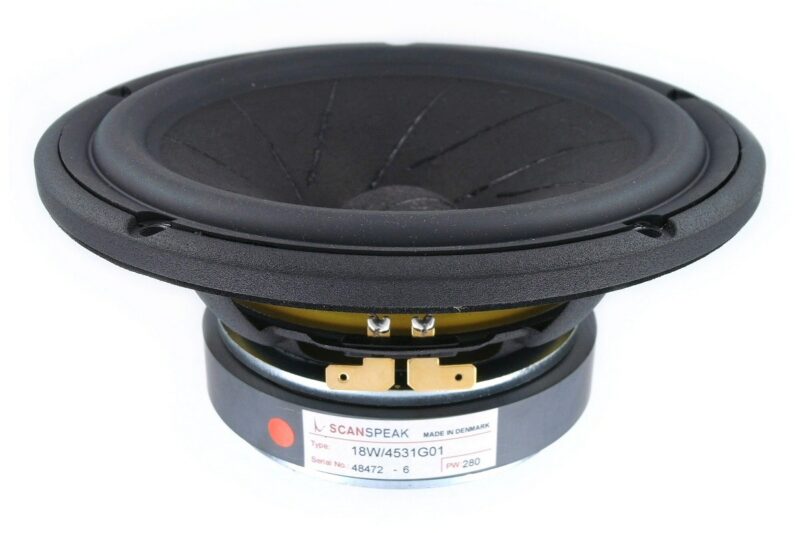

    18W/4531G01

    - Patented Symmetrical Drive Motor Design
    - Sliced Cone (Controls Cone Breakups)
    - Wood Fibre Cone
    - Low-Loss linear suspension
    - Low Damping SBR Rubber Surround
    - Large Ferrite Magnet System


      Size:18 cm
      Fs:34 Hz
      Re:3.5 Ω
      Qt:0.35
      Sensitivity:89 dB
      VAS:45.6 ltr.
      Sd:157 cm²
      Bl:5.7 Tm


  • Midwoofer

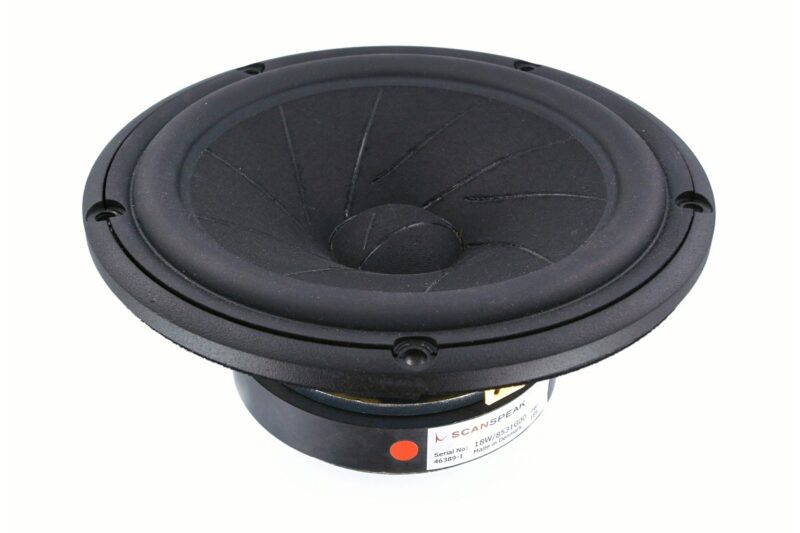

    18W/8531G00

    - Patented Symmetrical Drive Motor Design
    - Sliced Cone (Controls Cone Breakups)
    - Low-Loss linear suspension
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider
    - Large Ferrite Magnet System


      Size:18 cm
      Fs:28 Hz
      Re:5.8 Ω
      Qt:0.36
      Sensitivity:87 dB
      VAS:58.2 ltr.
      Sd:150 cm²
      Bl:6.8 Tm


  • Woofer

    22W/4851T00

    - Patented Symmetrical Drive Motor Design
    - Rigid Paper Cone
    - Low-Loss linear suspension
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider
    - Ferrite Magnet System w. Rubber Boot


      Size:22 cm
      Fs:21 Hz
      Re:3.7 Ω
      Qt:0.22
      Sensitivity:89 dB
      VAS:126 ltr.
      Sd:220 cm²
      Bl:8.2 Tm


  • Woofer

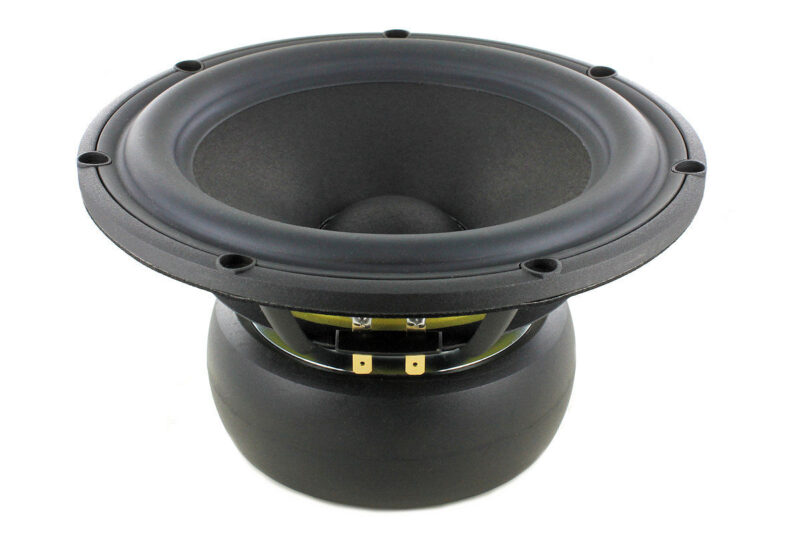

    22W/8851T00

    - Patented Symmetrical Drive Motor Design
    - Rigid Paper Cone
    - Low-Loss linear suspension
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider
    - Ferrite Magnet System w. Rubber Boot


      Size:22 cm
      Fs:21 Hz
      Re:6.2 Ω
      Qt:0.25
      Sensitivity:88 dB
      VAS:126 ltr.
      Sd:220 cm²
      Bl:9.9 Tm

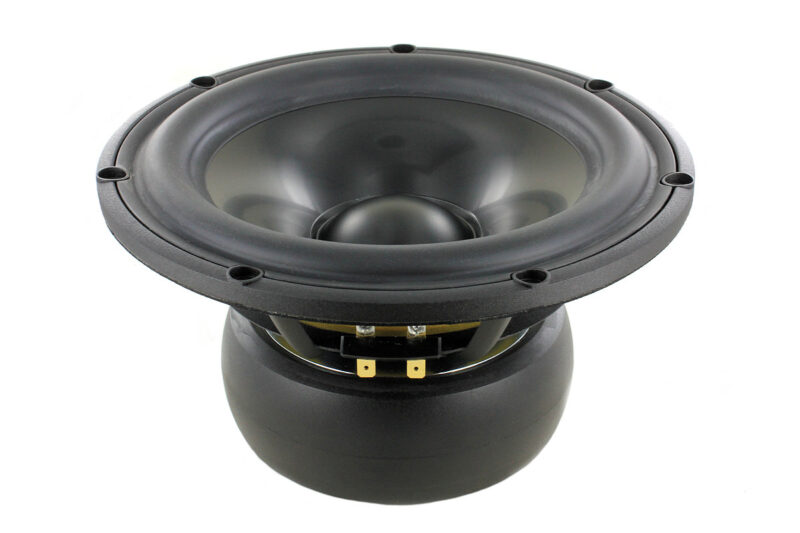

  • Woofer

    22W/8857T00

    - Patented Symmetrical Drive Motor Design
    - Rigid Black Anodized Alu Cone
    - Low-Loss linear suspension
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider
    - Ferrite Magnet System w. Rubber Boot


      Size:22 cm
      Fs:23 Hz
      Re:6.2 Ω
      Qt:0.3
      Sensitivity:86 dB
      VAS:87.7 ltr.
      Sd:220 cm²
      Bl:10.1 Tm


  • Subwoofer

    23W/4557T00

    - Patented Symmetrical Drive Motor Design
    - Silver Anodized Rigid Alu Cone
    - Long Throw Surround
    - Die cast Alu Chassis vented below spider
    - Ferrite Magnet System w. Rubber Boot
    - Gold Binding Post Terminals


      Size:23 cm
      Fs:21 Hz
      Re:3.5 Ω
      Qt:0.47
      Sensitivity:82 dB
      VAS:45 ltr.
      Sd:232 cm²
      Bl:9.3 Tm


  • Subwoofer

    23W/4557T02

    - Patented Symmetrical Drive Motor Design
    - Black Anodized Rigid Alu Cone
    - Long Throw Surround
    - Die cast Alu Chassis vented below spider
    - Ferrite Magnet System w. Rubber Boot
    - Gold Binding Post Terminals


      Size:23 cm
      Fs:21 Hz
      Re:3.5 Ω
      Qt:0.47
      Sensitivity:82 dB
      VAS:45 ltr.
      Sd:232 cm²
      Bl:9.3 Tm

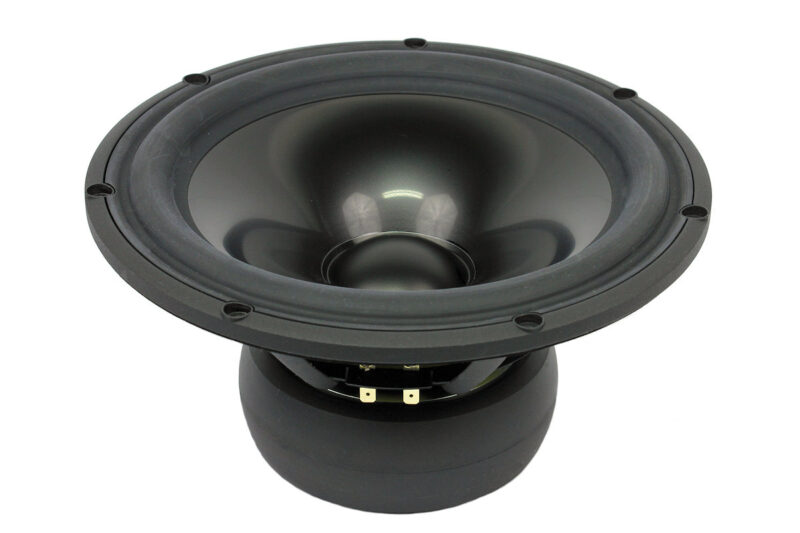

  • Woofer

    26W/4867T00

    - Patented Symmetrical Drive Motor Design
    - Rigid Black Anodized Alu Cone
    - Low-Loss linear suspension
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider
    - Ferrite Magnet System w. Rubber Boot


      Size:26 cm
      Fs:18 Hz
      Re:3.7 Ω
      Qt:0.29
      Sensitivity:89 dB
      VAS:220 ltr.
      Sd:320 cm²
      Bl:8.3 Tm


  • Woofer

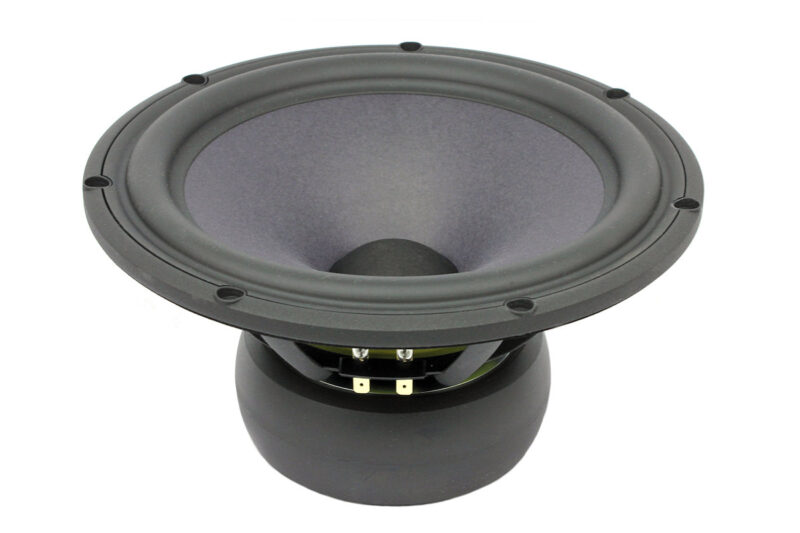

    26W/8861T00

    - Patented Symmetrical Drive Motor Design
    - Rigid Paper Cone
    - Low-Loss linear suspension
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider
    - Ferrite Magnet System w. Rubber Boot


      Size:26 cm
      Fs:19 Hz
      Re:6.2 Ω
      Qt:0.31
      Sensitivity:88.5 dB
      VAS:231 ltr.
      Sd:320 cm²
      Bl:9.9 Tm


  • Woofer

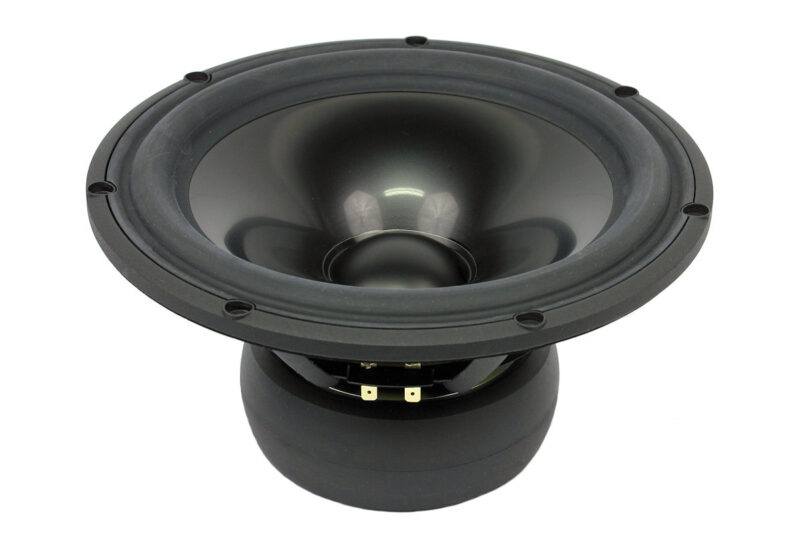

    26W/8867T00

    - Patented Symmetrical Drive Motor Design
    - Rigid Black Anodized Alu Cone
    - Low-Loss linear suspension
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider
    - Ferrite Magnet System w. Rubber Boot


      Size:26 cm
      Fs:19 Hz
      Re:5.8 Ω
      Qt:0.29
      Sensitivity:87 dB
      VAS:176 ltr.
      Sd:320 cm²
      Bl:11.2 Tm


  • Subwoofer

    28W/4878T00

    - Paper sandwich cone
    - Patented Symmetrical Drive motor
    - Spider with balanced tinsel leads
    - Extreme linear excursion (+/-14 mm)
    - 3" Voice coil, Titanium former and paper reinforced
    - Stiff and strong die cast aluminium chassis


      Size:28 cm
      Fs:18 Hz
      Re:3.1 Ω
      Qt:0.3
      Sensitivity:88 dB
      VAS:127 ltr.
      Sd:363 cm²
      Bl:11.2 Tm


  • Woofer

    28W/4878T01

    - Paper Sandwich cone
    - Patented Symmetrical Drive motor
    - Spider with balanced tinsel leads
    - Long linear excursion
    - 3" Voice coil, Titanium former, paper reinforced
    - Stiff and strong die cast aluminium chassis


      Size:28 cm
      Fs:23 Hz
      Re:3.1 Ω
      Qt:0.26
      Sensitivity:91 dB
      VAS:104 ltr.
      Sd:363 cm²
      Bl:12 Tm


  • Woofer

    28W/8878T01

    - Paper sandwich cone
    - Spider with balanced tinsel leads
    - 3" Voice coil, Titanium former, paper reinforced
    - Patented Symmetrical Drive motor
    - Long linear excursion
    - Stiff and strong die cast aluminium chassis


      Size:28 cm
      Fs:22 Hz
      Re:6.3 Ω
      Qt:0.31
      Sensitivity:88.5 dB
      VAS:116 ltr.
      Sd:363 cm²
      Bl:14.9 Tm


  • Subwoofer

    32W/4878T00

    - Paper sandwich cone with Patented foam filling
    - Extreme linear excursion (+/-14 mm)
    - Patented Symmetrical Drive motor
    - 3" Voice coil, Titanium former and paper reinforced
    - Spider with balanced woven in tinsel leads
    - Stiff and strong die cast aluminium chassis


      Size:32 cm
      Fs:18 Hz
      Re:3.1 Ω
      Qt:0.32
      Sensitivity:90 dB
      VAS:204 ltr.
      Sd:526 cm²
      Bl:12.5 Tm


  • Woofer

    32W/4878T01

    - Paper sandwich cone with Patented foam filling
    - Lin. excursion (±7.0 mm) with high efficiency
    - Patented Symmetrical Drive motor
    - 3" Voice coil, Titanium former and paper reinforced
    - Spider with balanced woven in tinsel leads
    - Stiff and strong die cast aluminium chassis


      Size:32 cm
      Fs:23 Hz
      Re:3.1 Ω
      Qt:0.28
      Sensitivity:92 dB
      VAS:170 ltr.
      Sd:531 cm²
      Bl:13 Tm


  • Woofer

    32W/4878T11

    - 95 dB Sensitivity @ 2,83V/1m
    - Paper sandwich cone
    - Coated foam Surround
    - Patented Symmetrical Drive motor
    - Powerful motor with dual ferrite magnets
    - 3" Voice coil, Titanium former and paper reinforced


      Size:32 cm
      Fs:24 Hz
      Re:3.1 Ω
      Qt:0.21
      Sensitivity:95 dB
      VAS:185 ltr.
      Sd:526 cm²
      Bl:14 Tm


  • Woofer

    32W/8878T01

    - Paper sandwich cone with Patented foam filling
    - Patented Symmetrical Drive motor
    - Spider with balanced woven in tinsel leads
    - Long linear excursion (+/- 7.5 mm)
    - 3" Voice coil, Titanium former and paper reinforced
    - Stiff and strong die cast aluminium chassis


      Size:32 cm
      Fs:19.1 Hz
      Re:6.1 Ω
      Qt:0.33
      Sensitivity:89 dB
      VAS:234 ltr.
      Sd:526 cm²
      Bl:15.6 Tm


  • Woofer

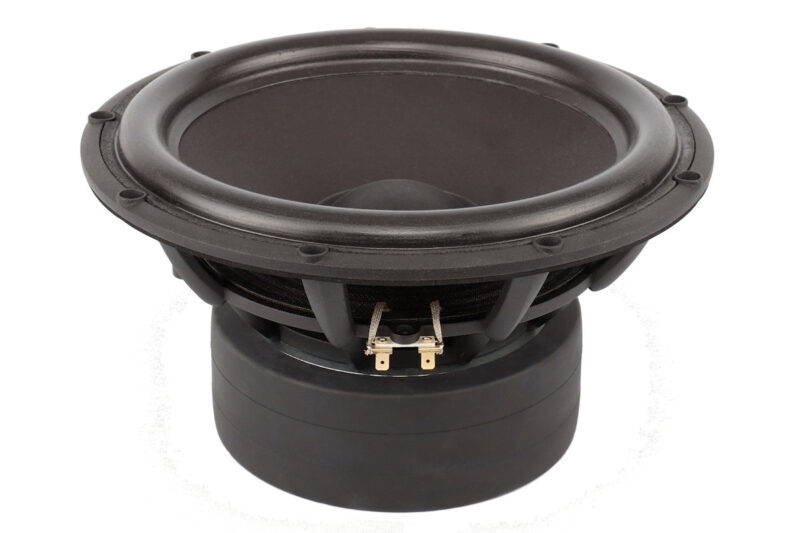

    32W/8878T11

    - 92 dB Sensitivity @ 2,83V/1m
    - Paper sandwich cone
    - Coated foam Surround
    - Patented Symmetrical Drive motor
    - Powerful motor with dual ferrite magnets
    - 3" Voice coil, Titanium former and paper reinforced


      Size:32 cm
      Fs:21 Hz
      Re:6.1 Ω
      Qt:0.26
      Sensitivity:91.5 dB
      VAS:235 ltr.
      Sd:526 cm²
      Bl:16.5 Tm


  • Tweeter

    D2104/712000

    - Patented Symmetrical Drive (SD-2) motor
    - Neodymium ring magnet system with double vent.
    - High frequency extension beyond 40kHz
    - Coated textile diaphragm w. large roll Surround
    - Back chamber with high consistency felt pads
    - Anodized Machined Alu Face Plate


      Size:1.9 cm
      Fs:500 Hz
      Re:2.8 Ω
      Qt:0.40
      Sensitivity:92 dB
      VAS:0.01 ltr.
      Sd:4.5 cm²
      Bl:2.0 Tm


  • Tweeter

    D2904/710002

    - 1" Coated Textile Diaphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Large Ring Neo Magnet f. High Output
    - Non Resonant Alu Rear Chamber
    - Silver Anodized Machined Alu Face Plate


      Size:2.6 cm
      Fs:520 Hz
      Re:3 Ω
      Qt:0.44
      Sensitivity:94.5 dB
      VAS:0.02 ltr.
      Sd:7 cm²
      Bl:2.8 Tm


  • Tweeter

    D2904/710003

    - 1" Coated Textile Diaphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Large Ring Neo Magnet f. High Output
    - Non Resonant Alu Rear Chamber
    - Black Anodized Machined Alu Face Plate


      Size:2.6 cm
      Fs:520 Hz
      Re:3 Ω
      Qt:0.44
      Sensitivity:94.5 dB
      VAS:0.02 ltr.
      Sd:7 cm²
      Bl:2.8 Tm


  • Tweeter

    D2905/990000

    - Excellent Sound Reproduction
    - 1" Textile Dome Diaphragm
    - Patented Symmetrical Drive (SD-2) motor
    - Wide Surround Textile Diaphragm
    - Large Wave Guide Front
    - Black Anodized Mashined Alu Face Plate


      Size:2.8 cm
      Fs:500 Hz
      Re:4.7 Ω
      Qt:0.63
      Sensitivity:91 dB
      VAS:0.02 ltr.
      Sd:8.5 cm²
      Bl:3.5 Tm


  • Tweeter

    D2908/714000

    - Beryllium Diaphragm (99% Pure Be)
    - Rear Mount Magnet System
    - Patented Symmetrical Drive (SD-2) motor
    - Titanium Voice Coil Former
    - Black Anodized ø120mm Machined Alu Faceplate
    - Non Resonant Aluminium Rear Chamber


      Size:2.6 cm
      Fs:534 Hz
      Re:5.7 Ω
      Qt:0.47
      Sensitivity:92 dB
      VAS:0.02 ltr.
      Sd:7 cm²
      Bl:3.6 Tm


  • Tweeter

    D2908/716000

    - Bespoke tailored Thin-Ply Carbon Diaphragm (TPCD)
    - Rear Mount Magnet System
    - Patented Symmetrical Drive (SD-2) motor
    - Titanium Voice Coil Former
    - Black Anodized 120mm Machined Alu Faceplate
    - Non Resonant Aluminium Rear Chamber


      Size:2.6 cm
      Fs:534 Hz
      Re:5.7 Ω
      Qt:0.47
      Sensitivity:92 dB
      VAS:0.02 ltr.
      Sd:7 cm²
      Bl:3.6 Tm


  • Tweeter

    R2904/700000

    - 1" Ring Dome Diaphragm
    - Patented Phase Plug Design
    - Patented Symmetrical Drive (SD-2) motor
    - Large Ring Neo Magnet f. High Output
    - Non Resonant Alu Rear Chamber
    - Silver Anodized Mashined Alu Face Plate


      Size:2.6 cm
      Fs:520 Hz
      Re:3 Ω
      Qt:0.33
      Sensitivity:94.5 dB
      VAS:0.01 ltr.
      Sd:5.6 cm²
      Bl:2.8 Tm


  • Tweeter

    R2904/700005

    - 1" Ring Dome Diaphragm
    - Patented Phase Plug Design
    - Patented Symmetrical Drive (SD-2) motor
    - Large Ring Neo Magnet f. High Output
    - Non Resonant Alu Rear Chamber
    - Black Anodized Machined Alu Face Plate


      Size:2.6 cm
      Fs:520 Hz
      Re:3 Ω
      Qt:0.33
      Sensitivity:94.5 dB
      VAS:0.01 ltr.
      Sd:5.6 cm²
      Bl:2.8 Tm


  • Tweeter

    R2904/700009

    - 1" Ring Dome Diaphragm
    - Patented Phase Plug Design
    - Patented Symmetrical Drive (SD-2) motor
    - Large Ring Neo Magnet f. High Output
    - Non Resonant Alu Rear Chamber
    - Black Anodized Machined Alu Face Plate


      Size:2.6 cm
      Fs:520 Hz
      Re:3 Ω
      Qt:0.33
      Sensitivity:94.5 dB
      VAS:0.01 ltr.
      Sd:5.6 cm²
      Bl:2.8 Tm
