Automotive

Showing 1–9 of 14 results

  • Automotive

    10M/4614G06


    - Very wide Frequency Range
    - Coated NRSC Fibre Glass Cone (patent)
    - Compact Size, Neo magnet, Alu. Chassis
    - High Sensitivity 88dB / 2,83V
    - SBR Rubber Surround
    - Copper Cap on Pole Piece


      Size:10 cm
      Fs:110 Hz
      Re:3.2 Ω
      Qt:0.53
      Sensitivity:88 dB
      VAS:1.3 ltr.
      Sd:36 cm²
      Bl:3.2 Tm


  • Automotive

    11M/4631G05


    - Sliced Paper Cone
    - Compact Neodymium Magnet System
    - Low-Loss Linear Suspension
    - Robust Alu Chassis
    - High Grade Neo Magnet
    - Protective Magnet Cup with Grill over Pole Vent


      Size:11 cm
      Fs:68 Hz
      Re:3.3 Ω
      Qt:0.31
      Sensitivity:90 dB
      VAS:2.7 ltr.
      Sd:50 cm²
      Bl:5.5 Tm


  • Automotive

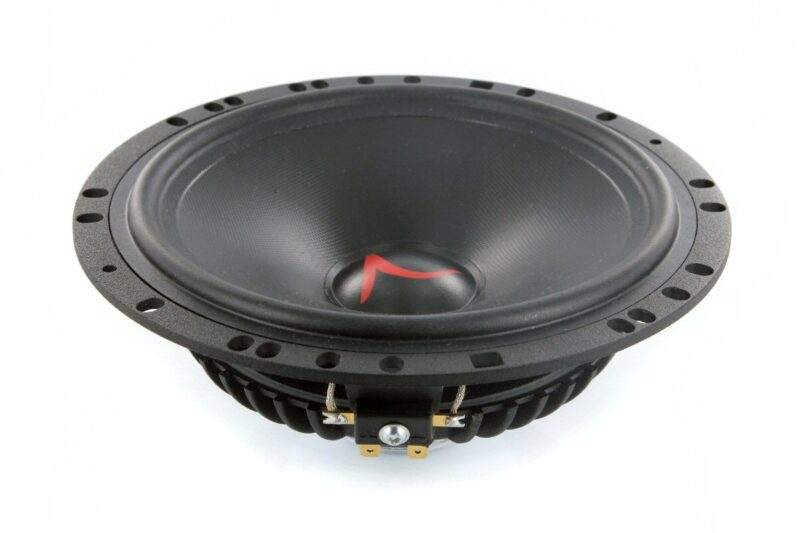

    16W/4434G00


    - Optimized for Car Use
    - Aluminium Die cast Basket
    - Black Coated NRSC Fibre Glass Cone
    - EURO-DIN mounting flange
    - Shallow mounting dimention
    - Low Loss Suspension, with Rubber Surround


      Size:16 cm
      Fs:55 Hz
      Re:3 Ω
      Qt:0.48
      Sensitivity:90.5 dB
      VAS:17.9 ltr.
      Sd:138 cm²
      Bl:4.8 Tm


  • Automotive

    16W/4531G06


    - Patented Symmetrical Drive Motor Design
    - Roboust Die cast Alu Chassis
    - Low Damping SBR Rubber Surround
    - Low-Loss linear suspension
    - Sliced Cone (Controls Cone Breakups)
    - Compact powerful Neo magnet


      Size:16 cm
      Fs:51 Hz
      Re:3.5 Ω
      Qt:0.59
      Sensitivity:88 dB
      VAS:12.6 ltr.
      Sd:123 cm²
      Bl:5.2 Tm


  • Automotive

    16W/4538G05


    - Die Cast Housing & Face Plate
    - High Grade Compact Neo magnet System
    - Low Damping SBR Rubber Surround
    - Low-Loss linear suspension
    - Patented Symmetrical Drive Motor Design
    - Robust Die cast Alu Chassis


      Size:16 cm
      Fs:36 Hz
      Re:3.1 Ω
      Qt:0.35
      Sensitivity:90 dB
      VAS:24 ltr.
      Sd:123 cm²
      Bl:5.5 Tm


  • Automotive

    26W/4558T06


    - 56mm Peak Excursion, 25mm Linear
    - Low Resonance Freq. 21Hz
    - Magnet System w. Alu Ring
    - High Output 88dB @ 2,83V
    - Anodized Alu Cone, Fibre Glass Dust Cap
    - Die cast Alu Chassis vented below spider


      Size:26 cm
      Fs:21 Hz
      Re:2.6 Ω
      Qt:0.31
      Sensitivity:88 dB
      VAS:95 ltr.
      Sd:352 cm²
      Bl:10.5 Tm


  • Automotive

    30W/4558T06


    - 56mm Peak Excursion, 25mm Linear
    - Low Resonance Freq. 17Hz
    - Magnet System w. Alu Ring
    - High Output 89dB @ 2,83V
    - Anodized Alu Cone, Fibre Glass Dust Cap
    - Die cast Alu Chassis vented below spider


      Size:30 cm
      Fs:17 Hz
      Re:2.6 Ω
      Qt:0.32
      Sensitivity:89 dB
      VAS:197 ltr.
      Sd:466 cm²
      Bl:10.5 Tm


  • Automotive

    32W/4878T05


    - Paper sandwich cone with patented foam filling
    - Extreme long linear excursion (+/-14mm)
    - Patented Symmetrical Drive motor
    - 3" Voice coil, Titanium former, paper reinforced
    - Large dustcap w. logo
    - Stiff robust die cast alu chassis


      Size:32 cm
      Fs:17 Hz
      Re:3.1 Ω
      Qt:0.32
      Sensitivity:89 dB
      VAS:180 ltr.
      Sd:526 cm²
      Bl:12.5 Tm


  • Automotive

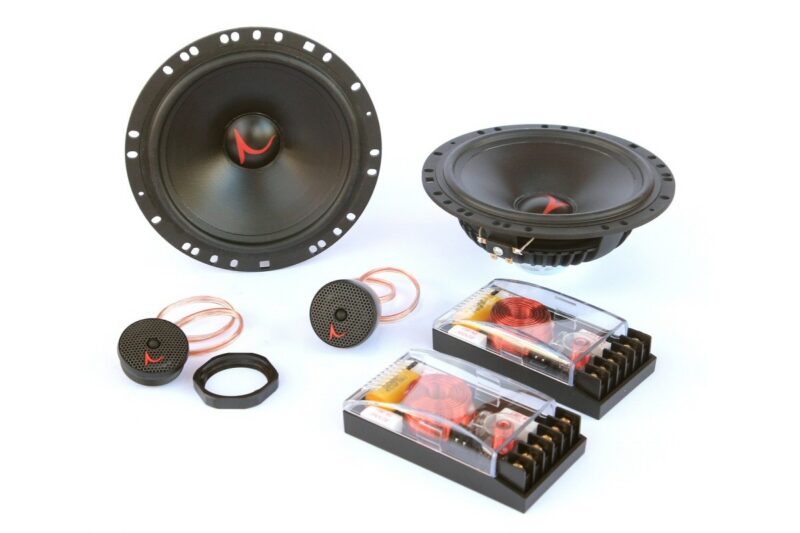

    820013


    - 2 x 130mm Midwoofers - EURO-DIN mounting
    - 2 x 19mm Ring Dome Tweeters
    - 2 x 2-Way Crossovers
    - Alu Die cast Chassis
    - Shallow Mounting Dimentions
    - Patented NRSC Fibre Glass Cone


      Size:15 cm
      Fs:80 Hz
      Re:3 Ω
      Qt:0.57
      Sensitivity:88 dB
      VAS: ltr.
      Sd:80 cm²
      Bl:4.8 Tm
