D2904/710003

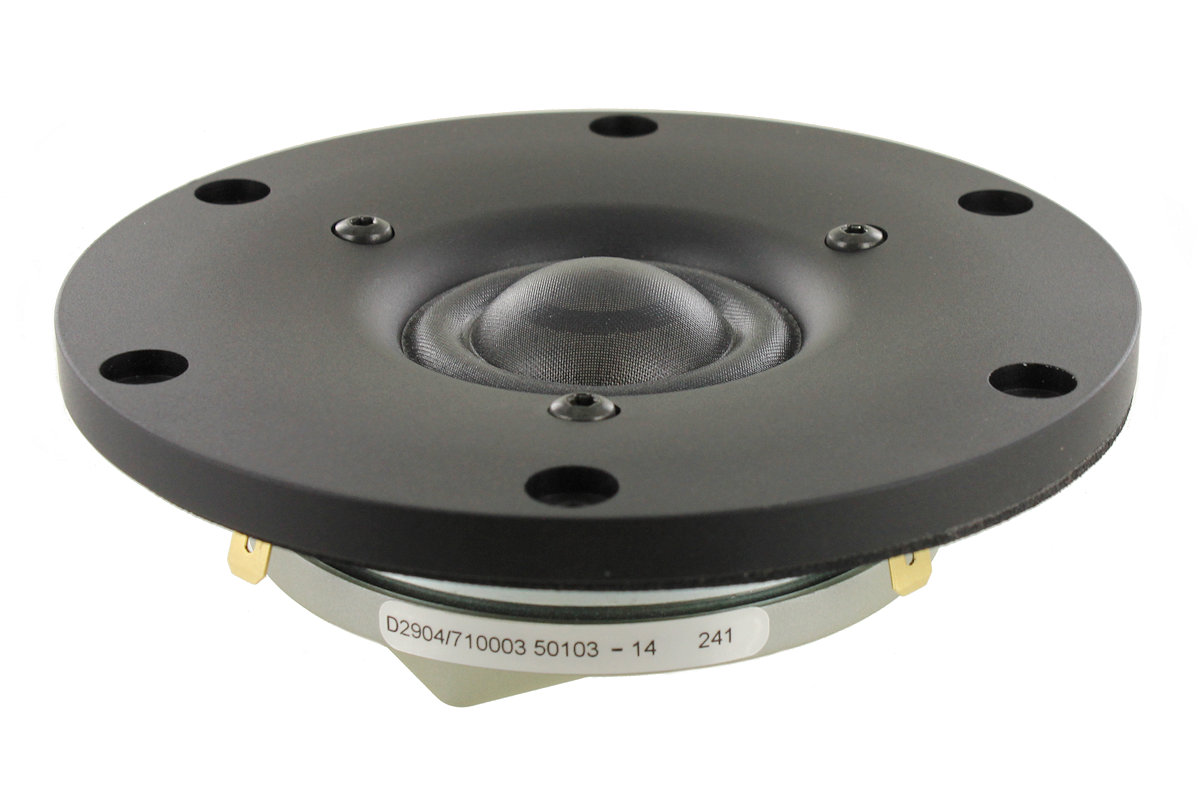

26mm Dome Tweeter 4ohm, Large Ring Neo, Black Faceplate

Category: Tags: ,

The Revelator Tweeters large roll surround technology represents a breakthrough in overall performance, with outstanding off-axis response, high output capability and low resonance frequency. Additional enhancements have been made to reduce distortion and power compression, such as large neodymium magnet systems for high sensitivity, and a careful design to optimise airflow in the chambers.

DIY Kits:
Illuminator 4 (D2904/710003, 18WU/8741T00, 22W/8851T00, 26W/8861T00)
Illuminator Monitor (D2904/7100, 18WU/8741T00)






Product Families

Revelator

Product Categories

Tweeter


- 1" Coated Textile Diaphragm
- Large Roll Surround f. Wide Dispersion
- Patented Symmetrical Drive (SD-2) motor
- Large Ring Neo Magnet f. High Output
- Non Resonant Alu Rear Chamber
- Black Anodized Machined Alu Face Plate

  Size:2.6 cm
  Fs:520 Hz
  Re:3 Ω
  Qt:0.44
  Sensitivity:94.5 dB
  VAS:0.02 ltr.
  Sd:7 cm²
  Bl:2.8 Tm
