D3004/604000

26mm Beryllium Dome Tweeter 4ohm, Neo, Small Chamber, Grill

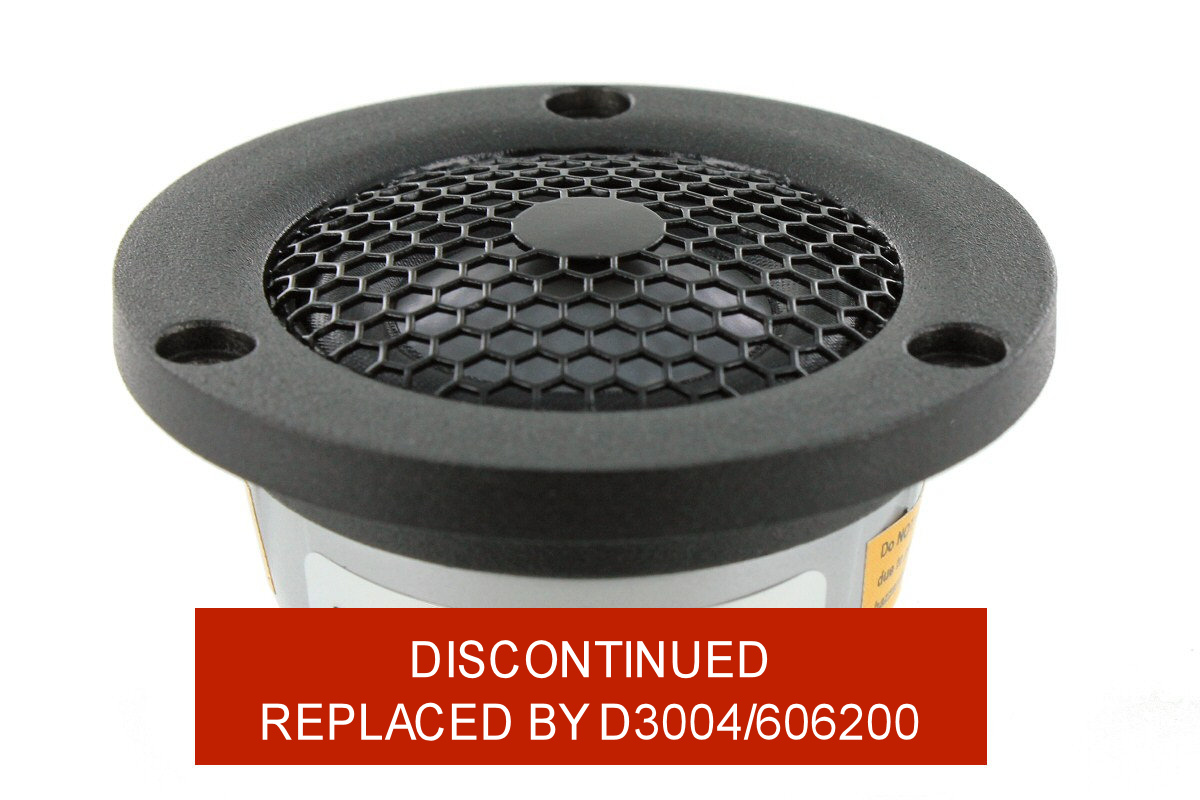

DISCONTINUED REPLACED BY D3004/606200.

Category: Tags: ,

This 1” compact Illuminator beryllium tweeter is an example of a big sound in a small body. As beryllium is a material characterised by great stiffness, light weight and high damping, the beryllium diaphragm offers all the properties required to reproduce excellent sound. And indeed, the 1” tweeter sounds great. It has a very low distortion and a distinct clarity that brings out the best in all types of music.
Download Beryllium Information Datasheet

Reviews:
Voice Coil, 05-2016






Product Families

Illuminator

Product Categories

Tweeter


- 1" Beryllium Diaphragm (99% pure Be)
- Large Roll Surround f. wide dispersion
- Patented Symmetrical Drive (SD-2) motor
- Compact Non Resonant Alu Rear Champer
- Die Cast Housing & Face Plate
- Sound Transparant Protective Grill

  Size:2.6 cm
  Fs:750 Hz
  Re:2.9 Ω
  Qt:1.41
  Sensitivity:90.5 dB
  VAS:0.01 ltr.
  Sd:7 cm²
  Bl:1.2 Tm
