D3004/604005

26mm Beryllium Dome Tweeter, 4ohm, Neo, Small Chamber, Grill

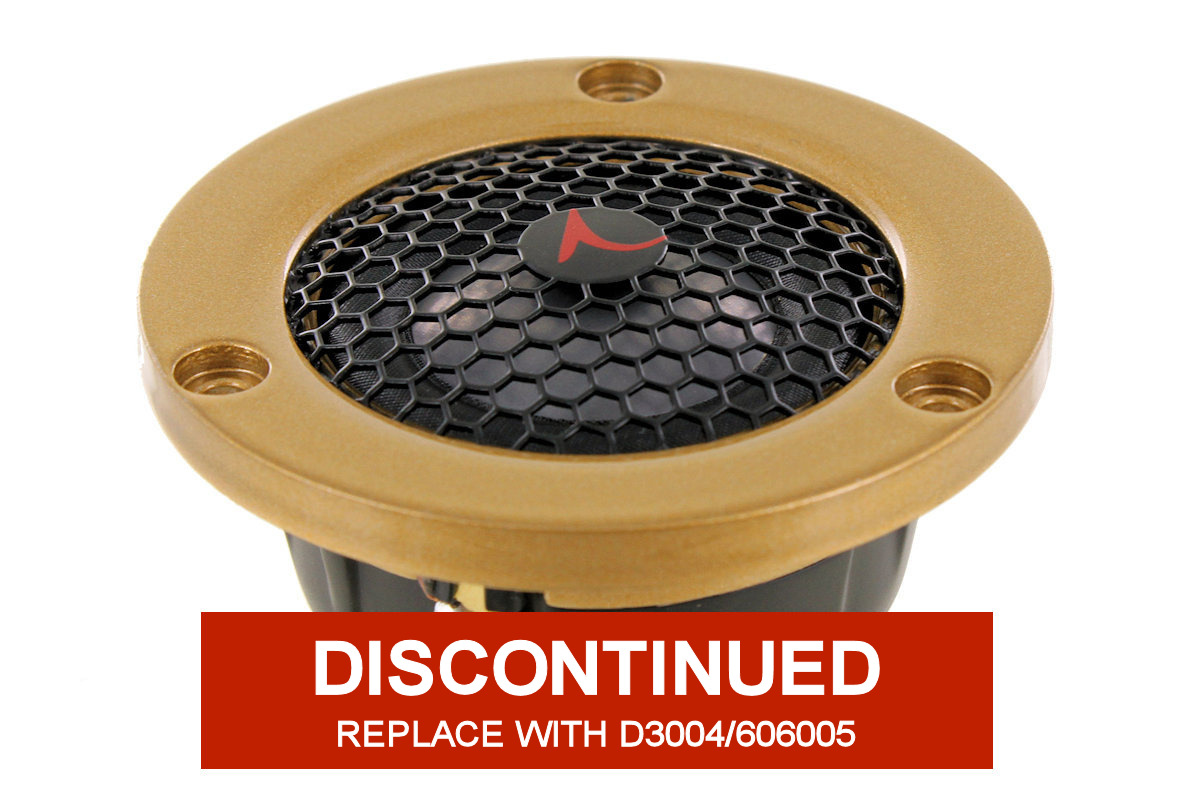

DISCONTINUED REPLACEMENT, COMING SOON.

Categories: , Tags: ,

Our GOLD SERIES are specially selected units from Scan-Speak’s well-known home audio speakers. Which have been optimized for automotive use. This series enables audiophiles to experience in their vehicle the – TRUE TO LIVE – that they enjoy from their high-end home audio system.
Download Beryllium Information Datasheet

Reviews:
Car & HiFi (GER), 06-2017






Product Families

Automotive

Product Categories

Tweeter, Automotive


- 1" Beryllium Diaphragm (99% pure Be)
- High Power Patented SD-2 magnet system
- Die Cast Housing & Face Plate
- Large Roll Surround f. wide dispersion
- Compact Non Resonant Alu Rear Champer
- Sound Transparant Protective Grill

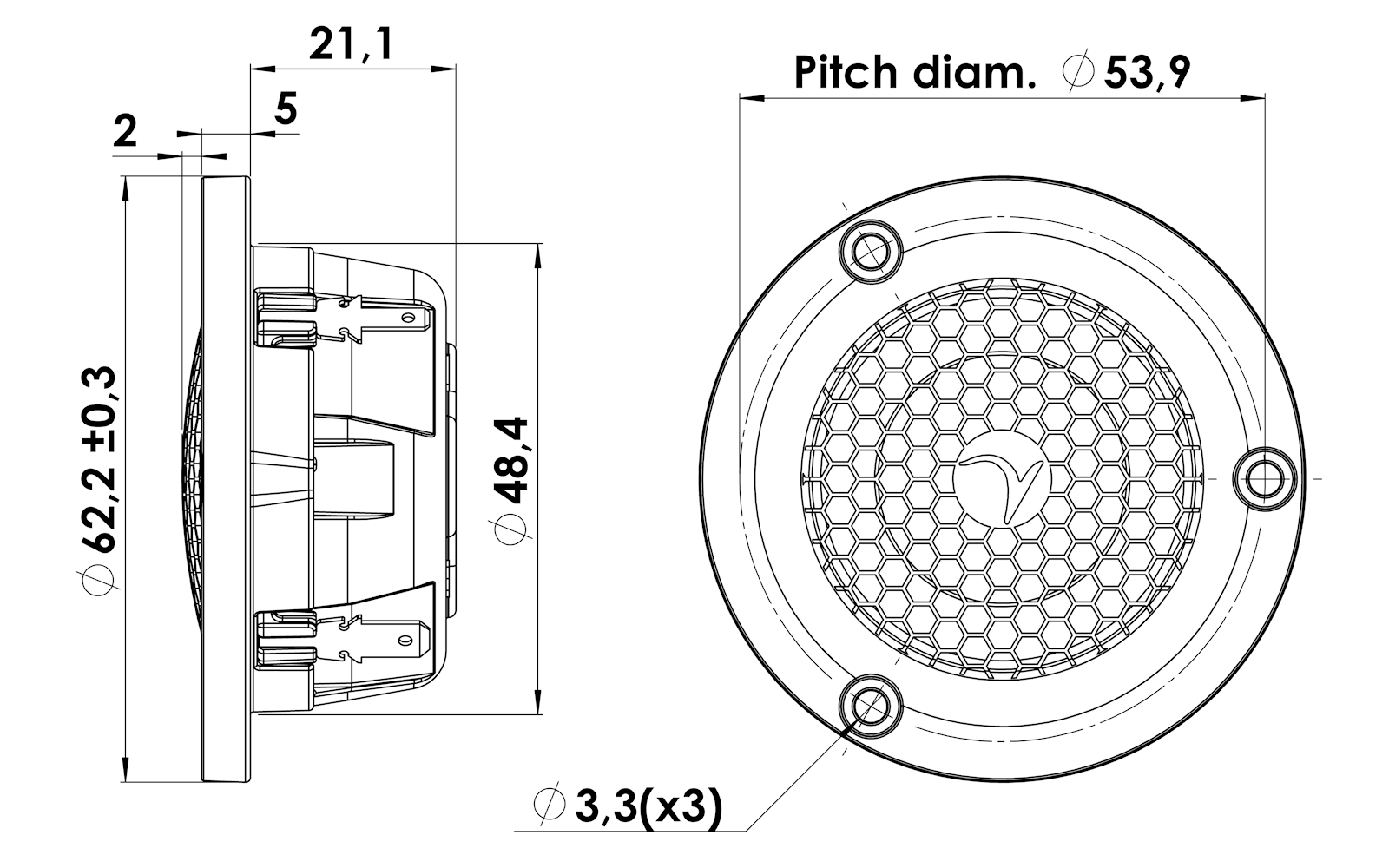

  Size:2.6 cm
  Fs:715 Hz
  Re:2.9 Ω
  Qt:0.69
  Sensitivity:92 dB
  VAS:0.01 ltr.
  Sd:7 cm²
  Bl:2.4 Tm
