D3004/662000

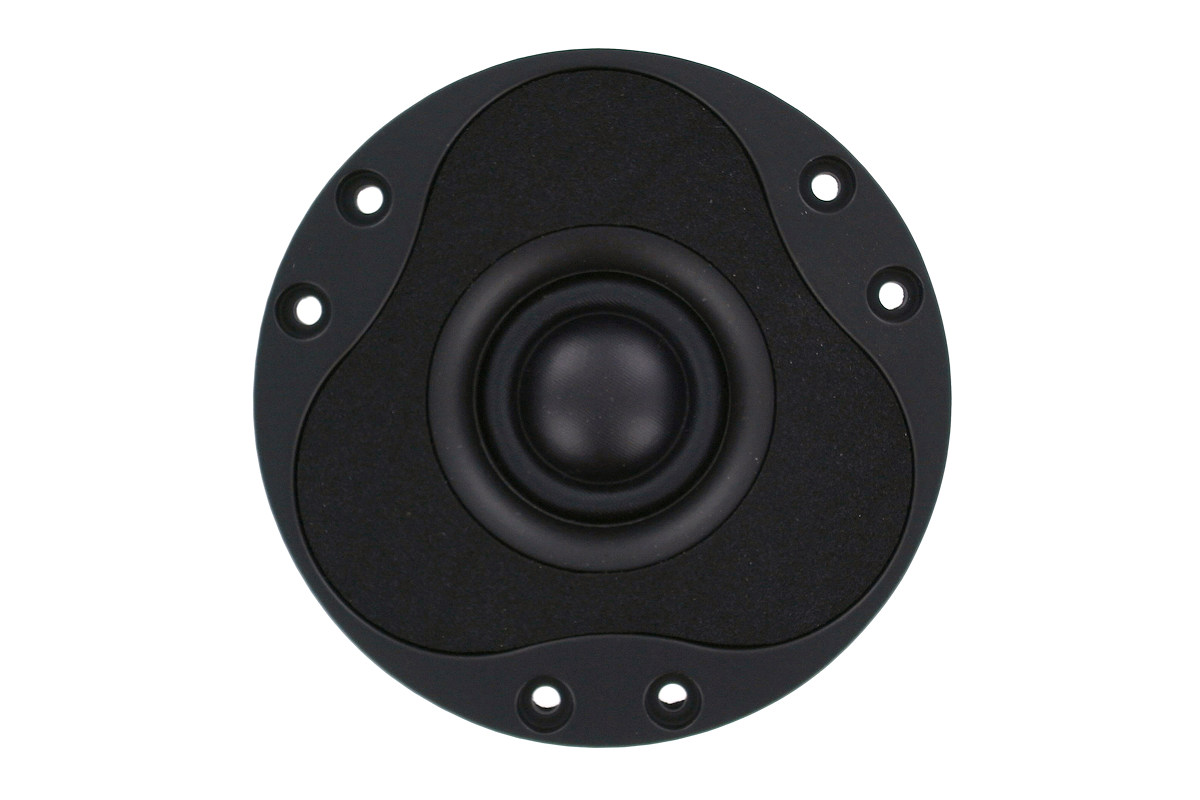

26mm Dome Tweeter 4ohm, Neo, AirCirc, Clover

Category: Tags: ,

The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. Its large roll surround and textile dome diaphragm provides a flat frequency response to above 30KHz with outstanding off-axis dispersion. The unique AirCirc Magnet System, and its rear chamber, results in elimination of reflections and resonances that compromise the performance of traditional motors.






Product Families

Illuminator

Product Categories

Tweeter


- 1" Textile Dome Diaphragm
- Large Roll Surround f. Wide Dispersion
- Patented Symmetrical Drive (SD-2) motor
- AirCirc Motor Design w. 6 Neo magnets
- Diffraction Damping Rubber Front
- Die Cast Rubber Painted Alu Face Plate

  Size:2.6 cm
  Fs:500 Hz
  Re:3 Ω
  Qt:0.54
  Sensitivity:91.5 dB
  VAS:0.02 ltr.
  Sd:7 cm²
  Bl:2.3 Tm
