D3004/666000

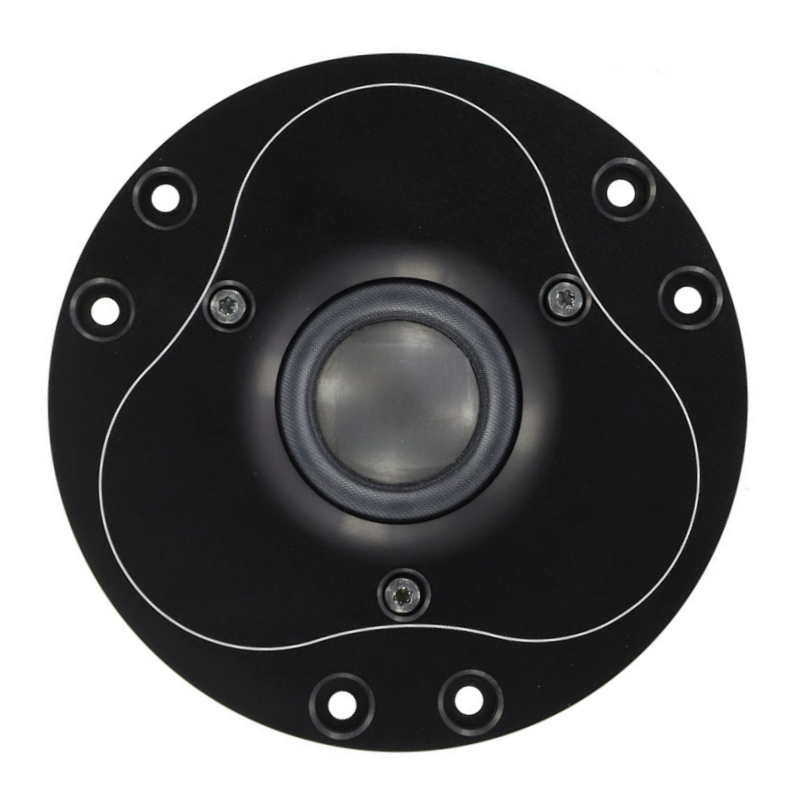

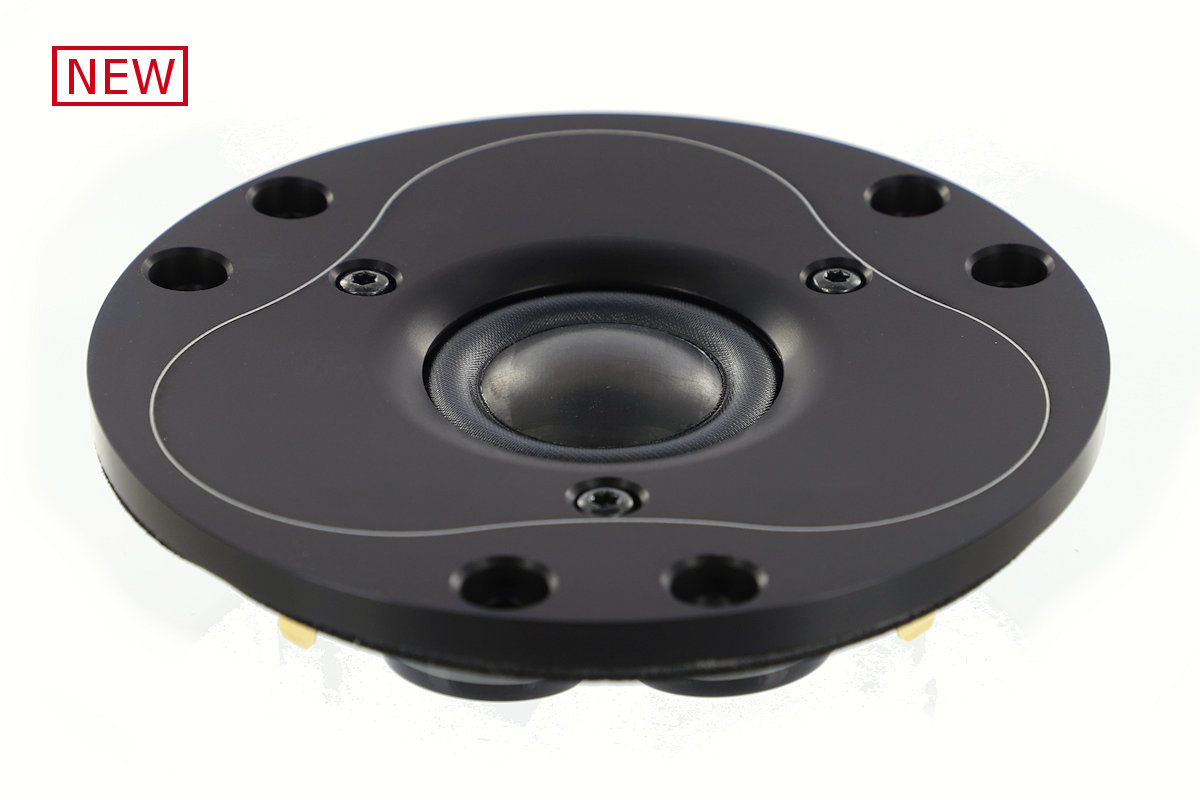

26 mm Dome Tweeter

Category: Tags: ,

The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. Its large roll surround and TPCD dome diaphragm provides a flat frequency response to above 40KHz with outstanding off-axis dispersion. The unique AirCirc Magnet System, and its rear chamber, results in elimination of reflections and resonances that compromise the performance of traditional motors.






Product Families

Illuminator

Product Categories

Tweeter


- Bespoke tailored Thin-Ply Carbon Diaphragm (TPCD)
- AirCirc Motor Design w. 6 Neo magnets
- Patented Symmetrical Drive (SD-2) motor
- Large Roll Surround f. Wide Dispersion
- Black Anodized mashined Faceplate


  Size:2.6 cm
  Fs:500 Hz
  Re:3 Ω
  Qt:0.54
  Sensitivity:91.5 dB
  VAS:0.02 ltr.
  Sd:7 cm²
  Bl:2.3 Tm
